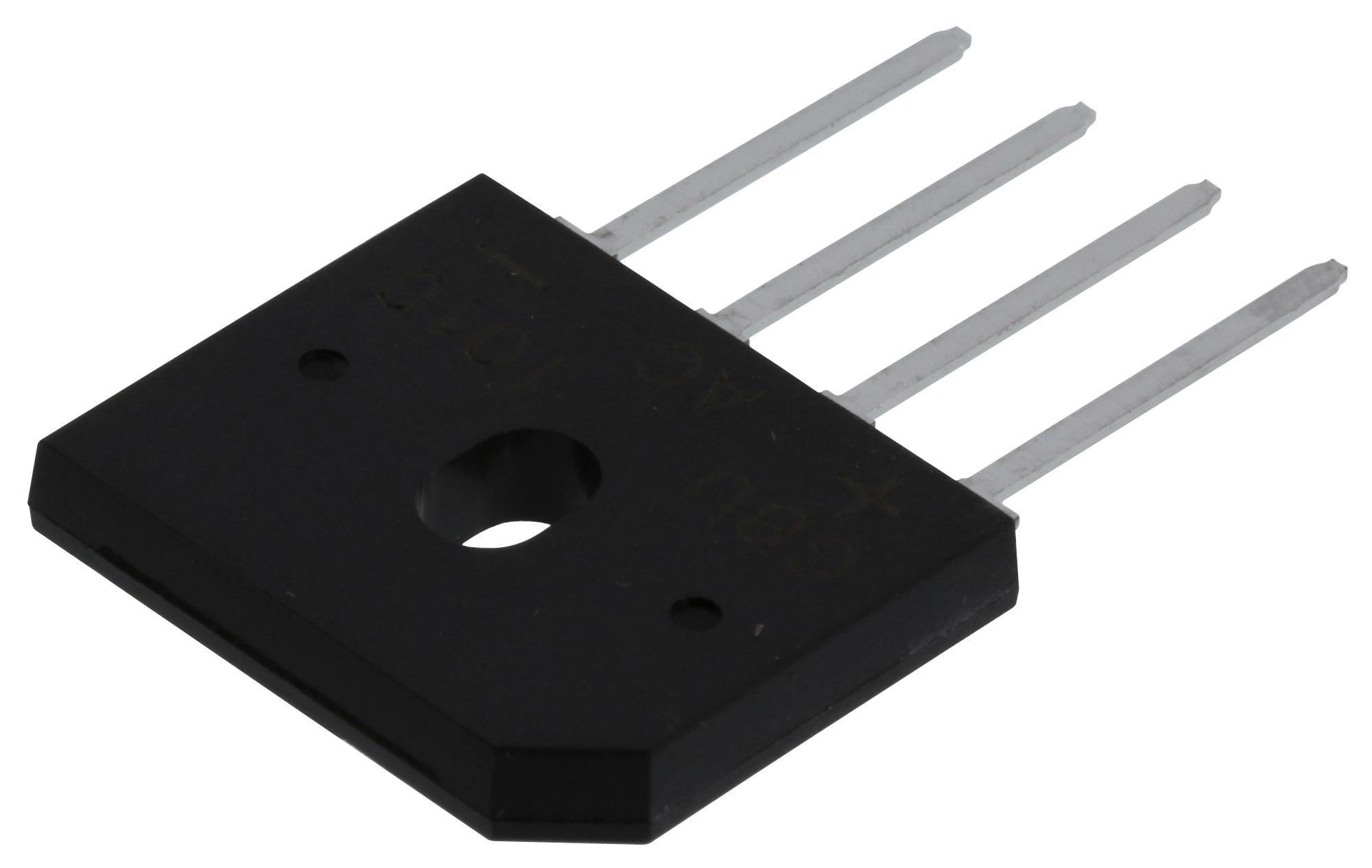

MULTICOMP PRO GBU1010 Bridge Rectifier
This high-quality glass passivated bridge rectifier is designed for reliable AC to DC conversion in power supplies and electronic circuits. Rated at 10A with voltages up to 1000V, it features surge overload capacity of 220 amperes peak, making it suitable for various industrial and commercial applications. Its robust plastic construction with UL 94V-0 flammability classification ensures safety and durability. The device operates effectively across a temperature range of -55°C to +150°C, offering consistent performance in resistive, inductive, and capacitive loads on printed circuit boards, ensuring long-lasting reliability.
MULTICOMP PRO GBU1010 Bridge Rectifier Specifications:
- Maximum Reverse Voltage: 800 to 1000 Volts
- Maximum RMS Voltage: 560 to 700 V
- Maximum DC Blocking Voltage: 800 to 1000 V
- Average Forward Current: 10 Amperes
- Peak Forward Surge Current: 220 Amperes
- Maximum Forward Voltage at 5A DC: 1 V
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions: Vary as per model, approximately 6.1mm to 14.1mm in size
- Housing Material: Molded plastic with UL 94V-0 flammability rating
- Mounting Position: Any
- Maximum Recurrent Peak Reverse Voltage: 800V for GBU1008, 1000V for GBU1010
Buy the Buy multicomp passivated bridge rectifier Part Number GBU1010 Online
Purchase the multicomp GBU1010 bridge rectifier online today for dependable power conversion in your electronic applications. Designed with high surge overload capacity of 220A peak and rated for 10A at 1000V, it is ideal for PCB mounting in industrial and commercial environments. Its UL 94V-0 flammability rated plastic housing guarantees safety and durability across a wide temperature range from -55°C to +150°C. Guaranteed reliable performance on resistive, inductive, and capacitive loads—get yours now and optimize your power systems efficiently.
Order your multicomp series GBU1010 1000V bridge rectifier today and ensure high efficiency and reliability in your power supply projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBU1010?
You can click on the BUY or RFQ button to purchase GBU1010 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBU1010?
You can download the GBU1010 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBU1010?
MULTICOMP PRO
