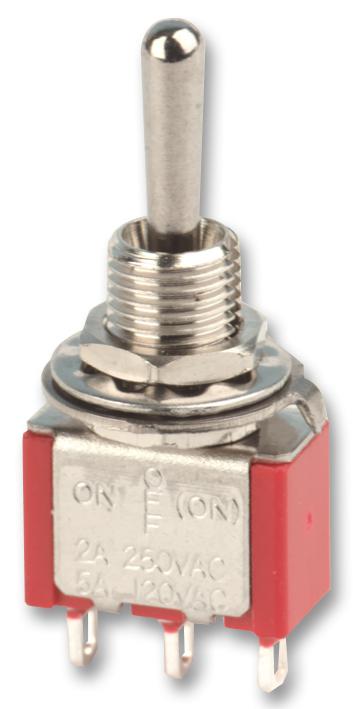

MULTICOMP PRO 1MS1T1B1M1RE SPDT Toggle Switch
The MULTICOMP PRO 1MS1T1B1M1RE is a miniature SPDT toggle switch designed for PCB applications. Constructed with durable materials like diallyl phthalate (DAP) for the case, brass for the actuator and bushing, and stainless steel for the housing, this switch offers reliable performance in various industrial environments. It boasts a mechanical life of 40,000 cycles and a contact resistance of 10mΩ, ensuring consistent and dependable switching action. The switch is RoHS compliant, reflecting a commitment to environmental responsibility. It is suitable for applications requiring a compact and reliable switching solution.
MULTICOMP PRO 1MS1T1B1M1RE SPDT Toggle Switch Specifications:
- Contact Rating: Dependent upon content material
- Mechanical Life: 40,000 make and break cycles
- Max. Contact Resistance: 10mΩ
- Initial Voltage: 2 to 4V DC
- Current: 10mA for both silver and gold plated contacts
- Insulation Resistance: 1,000MΩ
- Dielectric Strength: 1,000Vrms at sea level
- Operating Temperature: -30°C to +85°C
- Case: Diallyl phthalate (DAP) (UL94v-0)
- Actuator: Brass, chrome plated
- Bushing: Brass, nickel plated
- Housing: Stainless steel
- Switch Support: Brass, tin plated
- Terminal/Contact: Silver or gold plated
