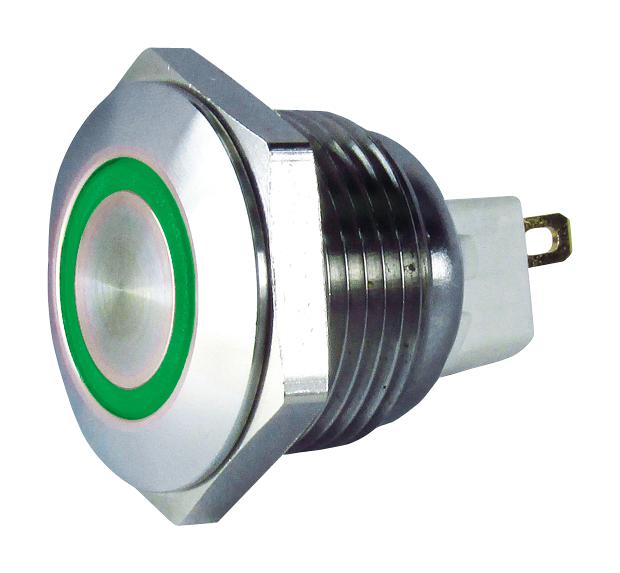

MULTICOMP PRO MC010894 Vandal Resistant Illuminated Switch
The illuminated vandal resistant switch features a durable stainless steel construction with a choice of flush, prominent, or domed mount tops for enhanced visibility and protection. Designed for easy installation with a 16mm mounting hole, it offers reliable performance with gold-plated contacts, UL5OE Type 4X indoor/outdoor suitability, and high dielectric strength. It has a rated voltage of 48V DC, LED voltages of 12V in various colors, and a long mechanical life of up to 1,000,000 cycles. Suitable for demanding industrial environments requiring vandal resistance and bright illumination.
MULTICOMP PRO MC010894 Vandal Resistant Illuminated Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green / Red / Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C
- Operating Temperature: 1-25°C to +50°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits: 500 m/S²; Operating limits: 200 m/S²
- Mechanical Life: Momentary: 1,000,000; Maintained: 250,000
- Electrical Life: 50,000
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Multicomp Vandal Resistant Switch – Reliable Illuminated Vandal Resistant Switch for Industrial Applications
Enhance your industrial control systems with this vandal resistant illuminated switch featuring stainless steel construction, bright LED illumination, and UL5OE Type 4X protection. It offers reliable operation with a long mechanical life and high dielectric strength, ensuring durability in harsh environments. Easy to install with a 16mm mounting hole, this switch comes in various LED colors and top styles—flush, prominent, or domed—making it ideal for demanding industrial applications requiring robust, vandal-resistant components. Purchase online today for dependable performance.
Buy multicomp vandal resistant illuminated switch now and experience unmatched durability, high visibility, and industrial-grade reliability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010894?
You can click on the BUY or RFQ button to purchase MC010894 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010894?
You can download the MC010894 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010894?
MULTICOMP PRO
