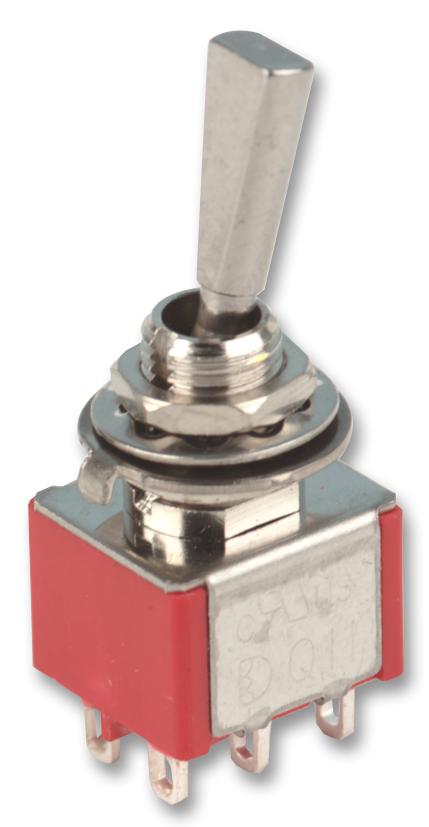

MULTICOMP PRO 1MS1T6B11M1QE Miniature Toggle Switch
The MULTICOMP PRO 1MS1T6B11M1QE is a miniature toggle switch offering a compact and reliable solution for electrical circuit control. Constructed with durable materials like diallyl phthalate (DAP) for the case and brass for the actuator and terminals, this switch ensures longevity and consistent performance. It boasts a mechanical life of 40,000 cycles and a low contact resistance of 10mΩ, making it suitable for a wide range of applications including industrial equipment, consumer electronics, and automation systems. The switch's various pole and switch function options provide flexibility in circuit design, catering to diverse control requirements. Available with different bushing and termination options, the 1MS1T6B11M1QE ensures seamless integration into various systems.
MULTICOMP PRO 1MS1T6B11M1QE Miniature Toggle Switch Specifications:
- Mechanical Life: 40,000 make-and-break cycles
- Contact Resistance: 10mΩ max. initial @ 2-4V DC 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000V rms min. @ sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass, tin plated
- Contact/Terminals Material: Brass, Silver or gold plated
