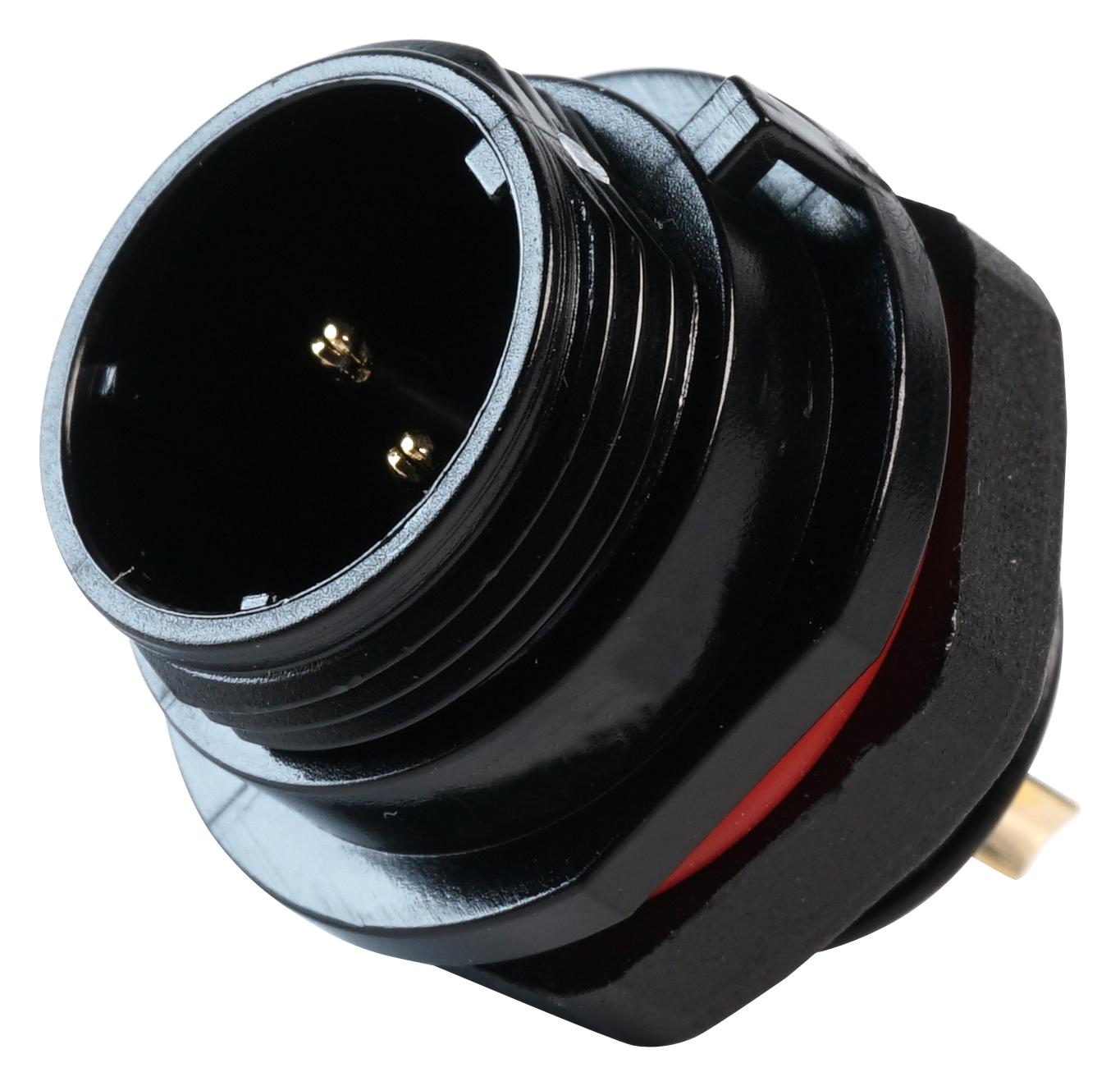

MULTICOMP-PRO MP002534 Circular Connector
The MP-T13 IP68 series offers a durable range of circular connectors designed for reliable waterproof performance in demanding environments. Featuring threaded couplings, weatherproof sealing, and a compact form factor, these connectors are ideal for both indoor and outdoor applications such as automation, process control, security, and industrial automation. Available in panel mount, cable mount, and inline options, they support 2, 3, 4, 5, and 7-pole configurations. Their solder termination, IP68 rating, and optional dust caps ensure long-lasting, secure connections in harsh conditions.
MULTICOMP-PRO MP002534 Circular Connector Specifications:
- Material: PC shell, PPS insert, brass contacts with gold plating
- Temperature Range: -40°C to +85°C
- Ingress Protection: IP68
- Shell Material: Thermoplastic
- Connection Type: Threaded coupling
- Termination: Solder
- Number of Contacts: 2, 3, 4, 5, 7
- Rated Current: 13A (2P), 5A (others)
- Rated Voltage: 250V (2P), 200-125V (others)
- Contact Resistance: 2.5mΩ (2P), 5mΩ (others)
- Max. Temperature of Insert Material: 260°C
- Mating Cycle: 500
- Cable Outer Diameter Range: 4mm to 8mm
- Dimensions: Suitable for 13mm panel cutout, various body sizes in mm
Buy the Buy MultiComp IP68 Circular Connectors Part Number MP002534 Online
Discover the high-performance MP-T13 IP68 circular connector, designed for durable, waterproof connections in industrial environments. Featuring threaded coupling, solder termination, and 13mm panel cutout fitting, these connectors support 2, 3, 4, 5, and 7-pole configurations suitable for automation, process control, security, and outdoor applications. Their IP68 rating guarantees protection against dust and water ingress, making them ideal for harsh conditions. Choose from panel mount, cable mount, and inline options, with optional dust caps for extra sealing, ensuring long-lasting, reliable operation across various industries.
Order your MultiComp IP68 series MP002534 circular connector today and ensure reliable waterproof connectivity for your industrial, automation, or outdoor projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002534?
You can click on the BUY or RFQ button to purchase MP002534 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002534?
You can download the MP002534 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002534?
MULTICOMP-PRO
