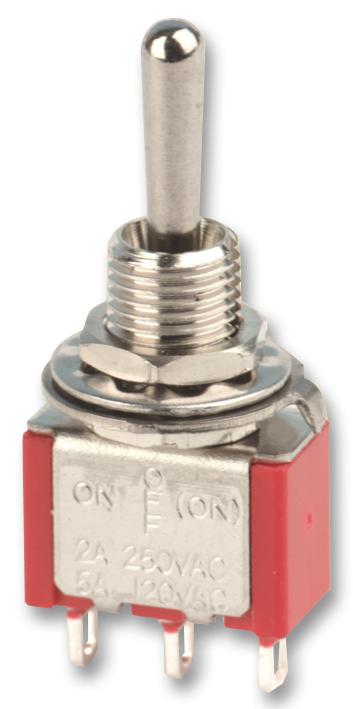

MULTICOMP PRO 1MS3T1B1M1QE 3-Way Toggle Switch
The MULTICOMP PRO 1MS3T1B1M1QE is a miniature toggle switch designed for a wide range of electrical and industrial applications. It features a 3-way switching function, offering flexibility in circuit control. Constructed with durable materials like diallyl phthalate (DAP), brass, and stainless steel, this switch ensures long-lasting performance and reliability. Available with various actuator and bushing options, it can be customized to meet specific application requirements. The switch's robust design and reliable operation make it suitable for use in control panels, machinery, and other industrial equipment.
MULTICOMP PRO 1MS3T1B1M1QE 3-Way Toggle Switch Specifications:
- Mechanical Life: 40,000 make-and-break cycles
- Contact Resistance: 10mΩ max. initial @ 2-4V DC 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000V rms min. @ sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass, tin plated
- Contact/Terminals Material: Brass, Silver or gold plated
