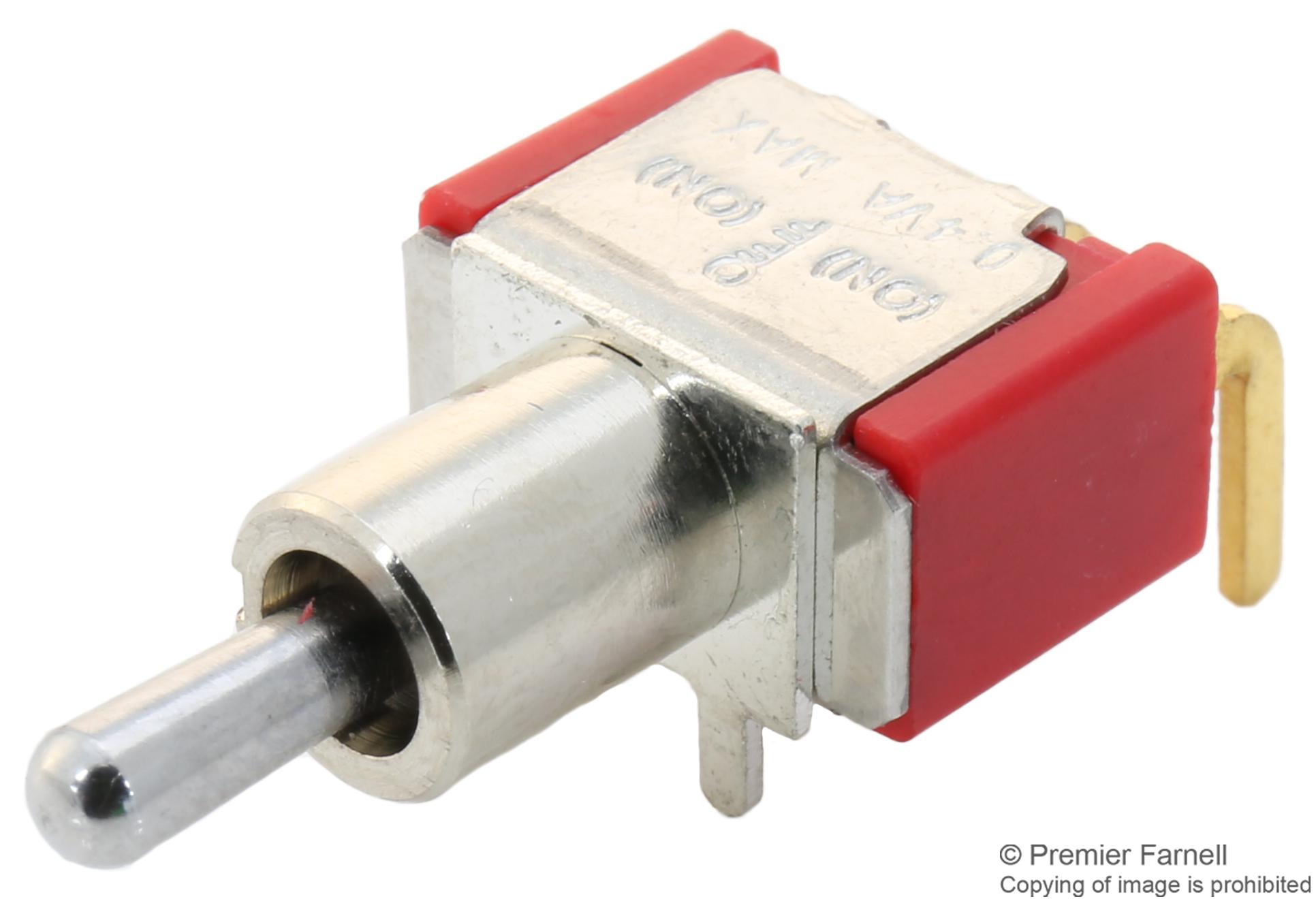

MULTICOMP PRO 1MS4T2B4M6RE Miniature Toggle Switch
The MULTICOMP PRO 1MS4T2B4M6RE is a miniature toggle switch suitable for a wide range of applications including industrial control panels, instrumentation, and consumer electronics. It features a robust construction with a diallyl phthalate (DAP) case and brass terminals, ensuring durability and reliable performance. The switch offers various switching functions, including ON-OFF-ON, ON-NONE-ON, and momentary options, catering to diverse circuit requirements. Its compact size and versatile mounting options make it an ideal choice for space-constrained designs.
MULTICOMP PRO 1MS4T2B4M6RE Miniature Toggle Switch Specifications:
- Mechanical Life: 40,000 make-and-break cycles
- Contact Resistance: 10mΩ max. initial @ 2-4V DC 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000V rms min. @ sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass, tin plated
- Contact/Terminals Material: Brass, Silver or gold plated
Buy the 1MS4T2B4M6RE MULTICOMP PRO Miniature Toggle Switch | myMectronic
Securely purchase the MULTICOMP PRO 1MS4T2B4M6RE online for all your electronic component needs.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1MS4T2B4M6RE?
You can click on the BUY or RFQ button to purchase 1MS4T2B4M6RE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1MS4T2B4M6RE?
You can download the 1MS4T2B4M6RE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1MS4T2B4M6RE?
MULTICOMP PRO
