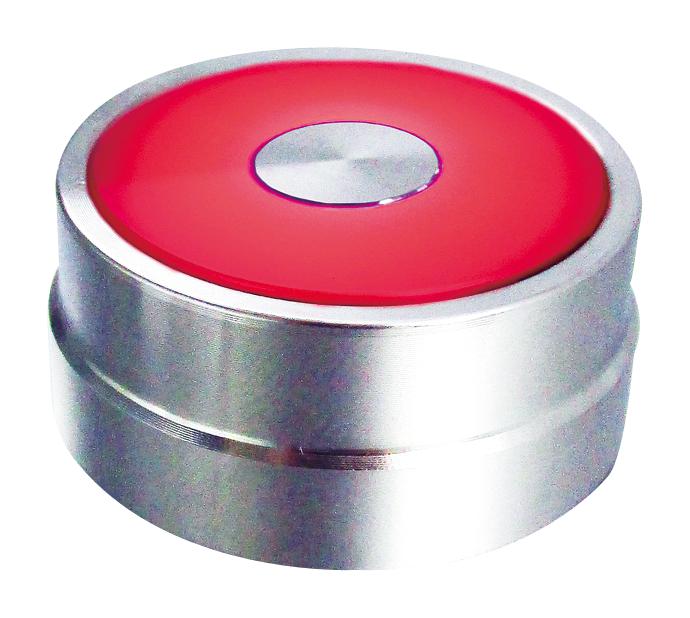

MULTICOMP PRO MC010964 Vandal-Resistant Switch
The flush illuminated vandal-resistant switch is designed for industrial and outdoor applications, featuring a metal bezel-ring and silhouette-ring that ensure durability. It is rated for 600V and 210A, with LED indicator lights available in green, red, and blue, powered by 12V AC/DC. The switch offers high dielectric strength, insulation resistance, and vibration resistance, making it suitable for harsh environments. Its IP65 degree of protection guarantees dust and water resistance, and it supports various configurations including maintained and momentary operations. Perfect for control panels, outdoor machinery, and vandal-proof safety switches.
MULTICOMP PRO MC010964 Vandal-Resistant Switch Specifications:
- Rated Voltage : 600V
- Rated Current : 210A
- LED Voltage : 12V AC/DC
- LED Colour : Green / Red / Blue
- Material / Finish : Aluminium
- Dielectric Strength : Between live part and ground: 2,000V AC / min
- Between terminals of the same poles: 1,000V AC / min
- Contact Resistance : 50mQ Max. (Initial value)
- Insulation Resistance : 100MQ Min. (500V DC)
- Operating Humidity : 45 to 85% RH (No condensation)
- Storage Temperature : -30°C to +80°C (No freezing)
- Operating Temperature : 1-25°C to +55°C (No freezing)
- Vibration Resistance : 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance : 1,000 m/s² damage limit, 100 m/s² operating limit
- Mechanical Life : Momentary 1,000,000 cycles, Maintained 100,000 cycles
- Electrical Life : 100,000 cycles
- Degree of Protection : IP65
- Terminal Style : Contact Block
Buy the Buy multicomp resistor part number MC010964 online
Purchase the durable and vandal-resistant switch with LED indicators online today. Featuring waterproof IP65 protection, aluminium construction, and rated for 600V and 210A, this switch is ideal for harsh environments. It offers high dielectric strength, insulation resistance, and vibration resistance, suitable for outdoor installations and control panels. Available in various configurations with green, red, and blue LEDs, this switch ensures safety, durability, and easy integration into industrial projects. Elevate your equipment’s reliability now.
Order your multicomp resistor MC010964 today and ensure reliable, vandal-proof operation for your control system.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010964?
You can click on the BUY or RFQ button to purchase MC010964 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010964?
You can download the MC010964 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010964?
MULTICOMP PRO
