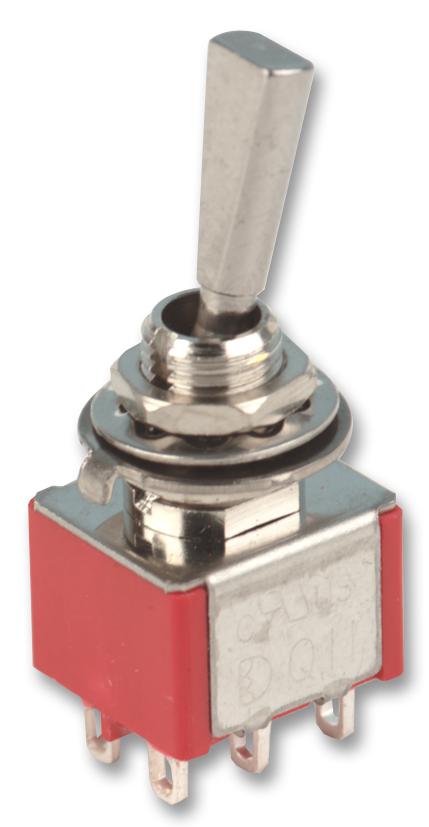

MULTICOMP PRO 1MS4T6B11M1QE SPDT Toggle Switch
The MULTICOMP PRO 1MS4T6B11M1QE is a robust SPDT toggle switch designed for reliable performance in diverse industrial environments. Its epoxy sealed terminations provide protection against moisture and contaminants, ensuring long-term functionality. The switch features a brass, chrome-plated actuator for durability and a nickel-plated bushing for smooth operation. It is suitable for applications requiring a momentary on-off-on switching action and can handle ratings up to 2A at 250V AC or 5A at 120V AC/28V DC.
MULTICOMP PRO 1MS4T6B11M1QE SPDT Toggle Switch Specifications:
- electrical_life: 40,000 make-and-break cycles at full load
- contact_resistance_initial: 10mΩ max. at 2-4V DC 100mA
- insulation_resistance: 1,000MΩ min.
- dielectric_strength: 1,000V RMS at sea level
- operating_temperature: -30°C to +85°C
- case_material: Diallyl phthalate (DAP)
- actuator_material: Brass, Chrome plated
- bushing_material: Brass, Nickel plated
- housing_material: Stainless Steel
- terminal_contact_material: Silver or gold plated
- rating_va_max: 0.4 Volt-Amps (VA) maximum at 20V maximum (AC or DC)
- rating_a_250vac: 2A at 250V AC
- rating_a_120vac_28vdc: 5A at 120V AC or 28V DC
- lever_length: 10.4
