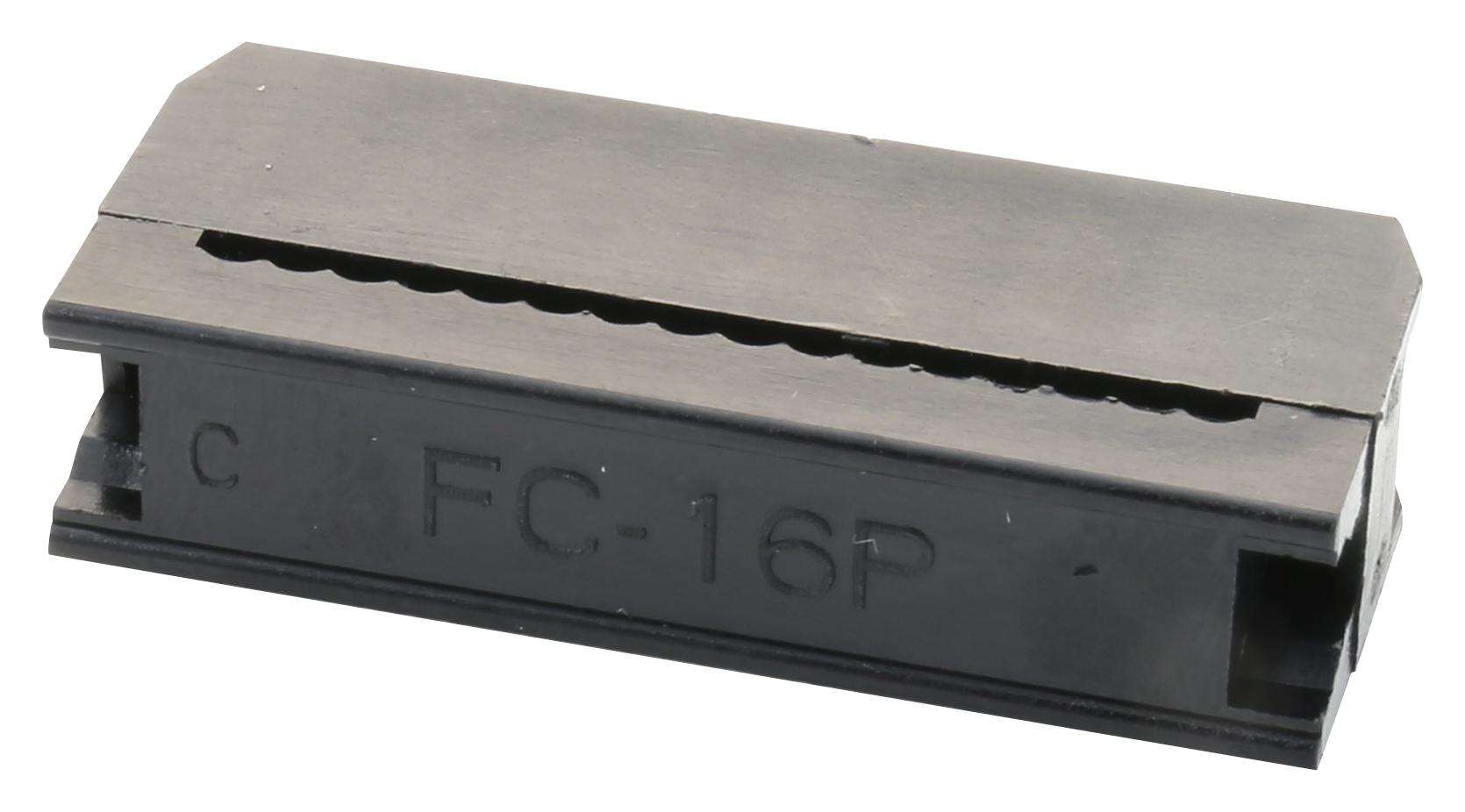

MULTICOMP PRO MC254180000IDC Flat Cable Connector
This flat cable IDC socket by Multicomp Pro is designed for reliable electrical connections in electronic assemblies. Featuring a 2.54mm pitch, it is available in multiple sizes from 6 to 64 positions, with a maximum of 85.96mm length. Constructed with UL94V-0 rated PBT insulators and copper alloy contacts, the sockets support current ratings up to 1A and voltage ratings up to 30V. Their gold-plated contacts ensure excellent conductivity and corrosion resistance, making them ideal for industrial, automation, and electronic projects requiring secure, easy-to-mate ribbon cable connections within temperature ranges from -40°C to +105°C.
MULTICOMP PRO MC254180000IDC Flat Cable Connector Specifications:
- Pitch: 2.54mm
- Current Rating: 1A
- Voltage Rating: 30V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 500V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials: PBT (UL94V-0) insulator, Copper Alloy contact
- Finish: Selective Gold Plated
- Dimensions vary by size, for example, 6POS socket measures 12.3mm x 5.08mm, and larger sizes extend up to 85.96mm length for 64POS.
- RoHS Compliant
Buy the Multicomp U-2013 Reliable Flat Cable IDC Socket for Industrial Applications
Order the Multicomp Pro Flat Cable IDC Socket in 2.54mm pitch today for secure, reliable ribbon cable connections suitable for industrial, automation, and electronics projects. Crafted from UL94V-0 rated PBT with gold-plated contacts, these sockets support current up to 1A and voltage up to 30V, ensuring excellent conductivity and durability. Their easy-mate design simplifies assembly and maintenance, while temperature tolerance from -40°C to +105°C makes them versatile across demanding environments. Perfect for a wide range of electrical and electronic applications requiring quick, secure cable terminations.
Get Multicomp Pro MC254180000IDC today—built for precision and long-lasting durability in electronic connections.
