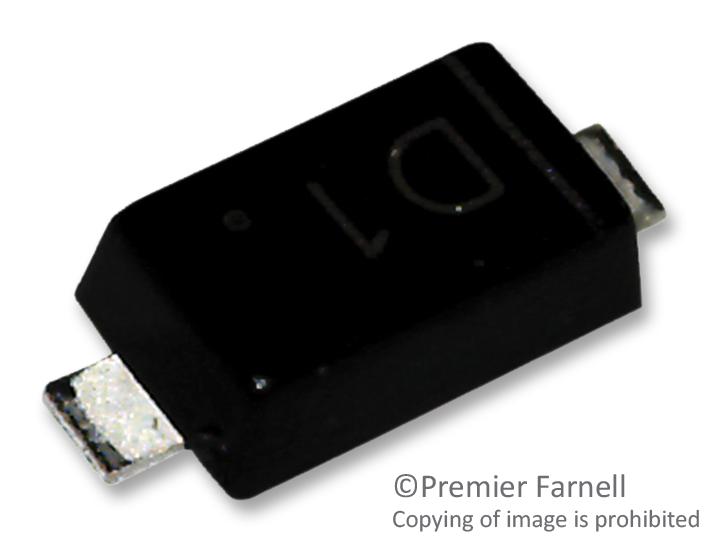

MULTICOMP PRO 1N4148W Small Signal Diode
These diodes are available in various case styles, including the DO-35 package marked as IN4148, the MiniMELF package labeled LL4148, and the MicroMELF package designated MCL4148. The specific diode features a SOD-123 package, offers fast switching capabilities, has a reverse voltage of 100 Volts, and a forward current of 150mA. They are suitable for electronics design, communication and control systems, embedded development, semiconductor projects, and low voltage circuits. Please note that high market demand has caused extended lead times, and delivery dates may fluctuate.
MULTICOMP PRO 1N4148W Small Signal Diode Specifications:
- Package Type: SOD-123
- Reverse Voltage: 100 V
- Forward Current: 150 mA
- Peak Reverse Voltage: 100 V
- Average Rectified Current: 150 mA
- Peak Forward Surge Current: 2 A
- Power Dissipation: 400 mW
- Junction Temperature: 150°C
- Storage Temperature: -65°C to +150°C
- Forward Voltage: 1 V at 10 mA
- Reverse Current: 5 pA at Vr = 75 V
- Capacitance: 4 pF
- Reverse Recovery Time: 4 ns
- Temperature Range: -65°C to +150°C
- Dimensions: Length approximately 4.05 mm, width 1.55 mm, height 0.5 mm
- Material: Silicon epitaxial planar
Buy the Multicomp 1N4148W – Reliable Fast Switching Diode for Industrial Applications
Order the Multicomp small signal diode 1N4148W now to ensure your electronics projects and control systems operate with high-speed switching, stability, and durability. This diode features a SOD-123 package, 100V reverse voltage, and 150mA forward current, making it ideal for low voltage circuits, communication systems, and embedded designs. Available online with quick delivery, it guarantees efficient performance for a broad range of electronic applications. Don’t miss the chance to enhance your device reliability—purchase today for unmatched quality.
Buy Multicomp 1N4148W now and experience unmatched reliability and performance in fast switching diode applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1N4148W?
You can click on the BUY or RFQ button to purchase 1N4148W from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1N4148W?
You can download the 1N4148W datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1N4148W?
MULTICOMP PRO
