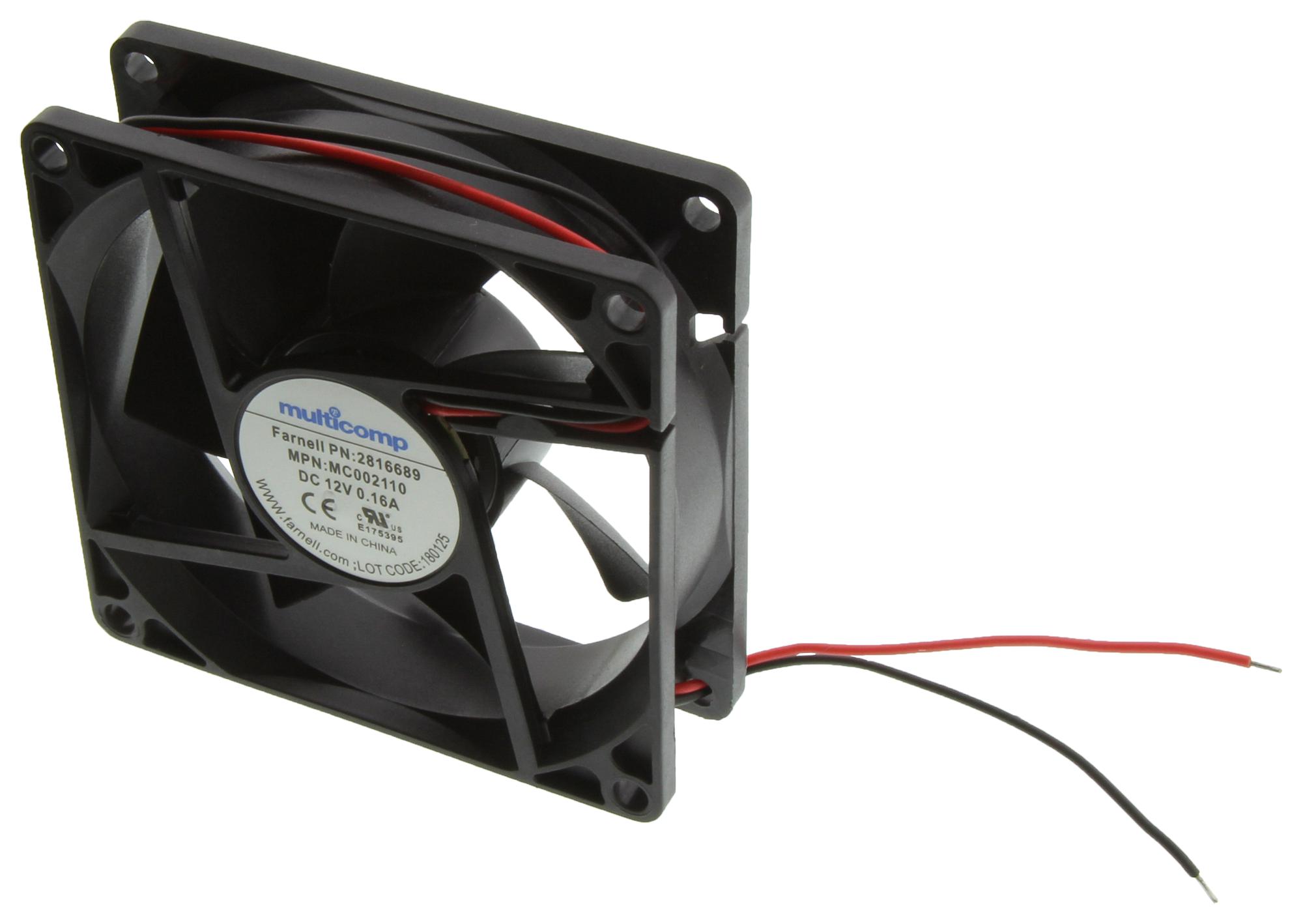

MULTICOMP PRO MC002110 Axial Cooling Fan
This high-performance axial motor fan features a 12V DC brushless design with a sleeve bearing, ideal for cooling applications requiring reliable airflow. It operates efficiently at 3000 RPM, delivering up to 38.6 CFM of airflow with a maximum pressure of 3.02 mm H2O. Built with UL94V-0 plastic housing and blades, it withstands temperatures from -10°C to +70°C and humidity levels up to 145%. Its compact dimensions and low noise—20dB or less—make it suitable for cooling electronic devices in various environments.
MULTICOMP PRO MC002110 Axial Cooling Fan Specifications:
- Rated Voltage: 12V DC
- Rated Current: 0.16A ±0.03A
- Rated Power: 1.92W
- Operating Voltage Range: 10.2V to 13.8V
- Speed: 3000 RPM ±10%
- Air Flow: 38.6 CFM at 0 pressure
- Max Air Pressure: 3.02 mm H2O
- Housing Material: PBT UL94V-0
- Blade Material: PBT UL94V-0
- Bearing Type: Sleeve Bearing
- Lead wire: 24 AWG, 150mm length
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +80°C
- Noise Level: ≤20 dB in operation
- Vibration Resistance: 5-3Hz, 0.04mm peak-to-peak, 30-500Hz, 2g peak
- Shock Resistance: 60g for 11ms
- Durability: 30,000 hours at 25°C and 45-85% humidity
- Dimensions: approximately 25mm x 25mm x 10mm
- Insulation Resistance: ≥10 MΩ at 250V DC
- Dielectric Withstand Voltage: 500V AC
Buy the Multicomp Series Axial Cooling Fan: MC002110
Upgrade your electronic cooling system with the Multicomp axial fan, offering 12V DC operation, high airflow of 38.6 CFM, and quiet performance at 20dB or less. Its durable sleeve bearing ensures long-lasting reliability even under continuous operation. Compact design measures approximately 25mm square, making it ideal for tight spaces. With a maximum pressure of 3.02 mm H2O, it effectively dissipates heat in various environments. Perfect for electronics, server cooling, or industrial applications requiring efficient and silent airflow.
Buy Multicomp series MC002110 axial cooling fan now and experience reliable airflow, low noise, and long-lasting performance for your electronic cooling needs.
