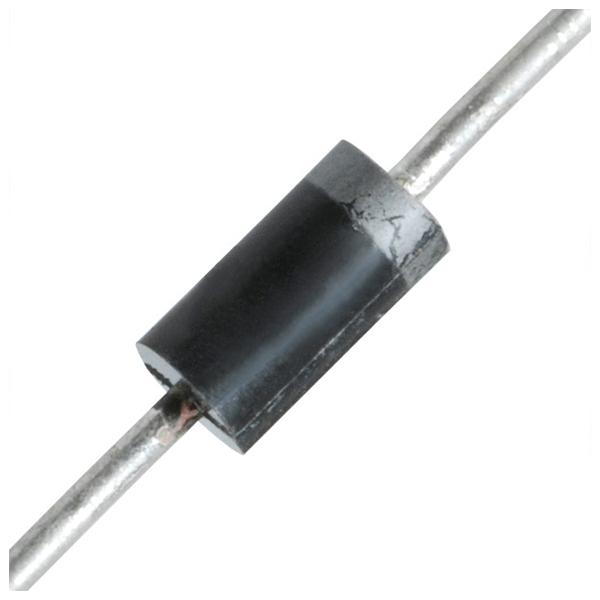

MULTICOMP PRO 1N749A Zener Diode Voltage Stabilization
The MULTICOMP PRO 1N749A is a Zener diode offering high reliability and a sharp reverse characteristic, making it ideal for voltage stabilization in a wide range of electronic applications. It's designed to provide a stable voltage output, protecting sensitive components from voltage fluctuations. The device operates within a Zener voltage range of 3.3 to 12V and is suitable for use in power supplies, voltage regulators, and other circuits requiring precise voltage control. Maximum ratings include a power dissipation of 500mW and a junction temperature of 200°C, ensuring robust performance under various operating conditions. Refer to the datasheet for detailed electrical characteristics and thermal resistance specifications.
MULTICOMP PRO 1N749A Zener Diode Voltage Stabilization Specifications:
- High reliability: Yes
- Reverse characteristic: Sharp
- Zener voltage: 3.3 to 12V
- Vz-tolerance: ±5%
- Power dissipation: 500 mW
- Z-current: Pv / Vz mA
- Junction Temperature: 200 °C
- Storage Temperature Range: -65 to +200 °C
- Junction ambient thermal resistance: 300 K/W
- Forward voltage: 1.5 V (If= 200mA)
- VZnom: 4.3 V (for 1N749A)
- Izt for Zzt: 20 mA
- Ir at Vr: 2 mA
- Izm: 85 mA
