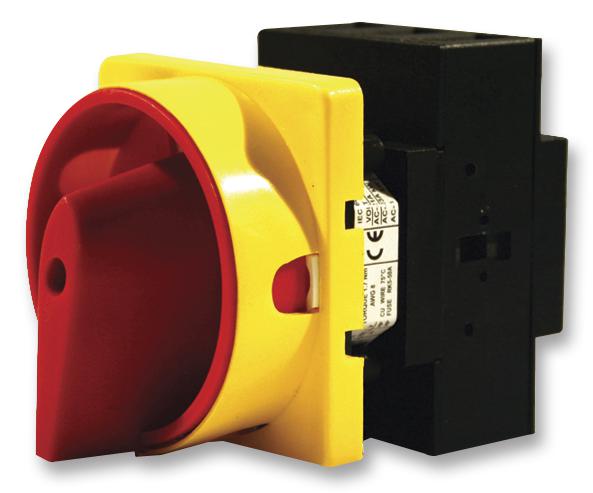

MULTICOMP PRO LBPM323P Switch Disconnector
The enclosed switch disconnector is a panel-mounted, three-pole device rated for 32A, suitable for industrial and electrical panel applications. It complies with UL508, IEC & EN 60947-1 and 3 standards, offering reliable isolation and switching functions for power systems up to 690V. Designed for ease of installation, it features a durable construction with terminal specifications supporting fine strands and multiple wires, with a recommended tightening torque of 1.7 Nm. This switch disconnector ensures safe operation and high short circuit ratings, serving as an essential component for control and industrial automation systems.
MULTICOMP PRO LBPM323P Switch Disconnector Specifications:
- Rated operational voltage Ue: IEC & EN 690V, UL 600V
- Main isolating voltage: 750V
- Rated impulse withstand voltage: 6 kV
- Rated uninterrupted current: 32A
- Rated operational current AC-22A up to 690V: 32A
- Rated operational power AC-23A at 400V: 18.5 kW
- Power rating at 240V: 10 hp, 480V: 20 hp, 600V: 30 hp
- UL short circuit rating: 10 kA, Fuse rating: 70A class J
- Terminal specification: 25 mm² max wire, 10 AWG min wire, 6 mm² fine strand
- Recommended tightening torque: 1.7 Nm
- Dimensions: Panel mount, 3 pole configuration, supporting 25A current
- Certifications: UL508, IEC & EN 60947
- Switch code: LBPM323P
- Form factor: Panel mount, load break switch for industrial control
- Rated operational voltage (V): 690V
- Fuse ratings: 70A, Short circuit current: 30 kA
Buy the Buy multicomp Switch Disconnector Part Number LBPM323P Online
Order the multicomp switch disconnector LBPM323P online today and ensure safe, reliable power control in your industrial and automation applications. This panel-mounted, three-pole device rated for 32A delivers high short circuit capacity, UL and IEC compliance, and durable construction. Its easy installation and robust terminal design support various wiring configurations, making it an essential component for electrical control panels. Don't miss the opportunity to upgrade your power switching solutions with this high-quality, internationally certified switch disconnector for optimal safety and performance.
Buy multicomp LBPM323P switch disconnector now and experience reliable power isolation for industrial automation.
