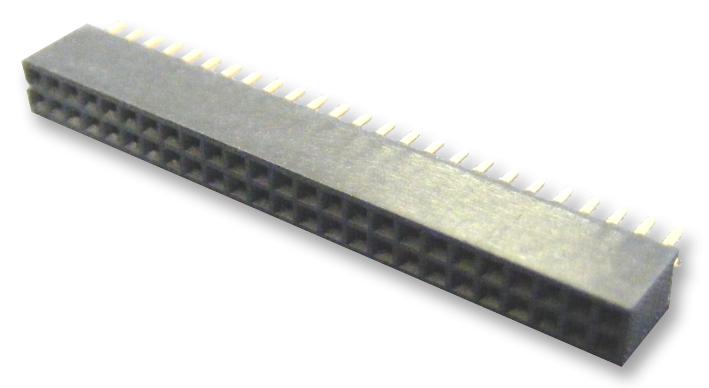

MULTICOMP PRO 2200SB20GA1 PCB Socket
The 2200SB-20G-A1 is a 20-position, two-row vertical PCB socket with gold-plated phosphor bronze contacts and a high-temperature plastic insulator, ensuring reliable industrial connections. It supports a current rating of 1A and a voltage rating of 50VAC/DC, making it ideal for electronic assemblies. The socket features a maximum contact resistance of 20 microohms and a minimum insulation resistance of 1000 megaohms, providing secure, durable connections suited for demanding environments. Its composite design facilitates stable board-to-board assembly with solder termination and a pitch spacing of 1.27mm, measuring 4.5mm in height.
MULTICOMP PRO 2200SB20GA1 PCB Socket Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 50V AC/DC
- Maximum Contact Resistance: 20mΩ
- Minimum Insulation Resistance: 1,000MΩ
- Withstanding Voltage: 500V AC/minute
- Operating Temperature Range: 1-25°C to +105°C
- Pitch Spacing: 1.27mm
- Number of Rows: 2
- Number of Contacts: 20
- Gender: Plug
- Contact Termination: Solder
- Connector Type: Board to Board
- External Length / Height: 4.5mm
- Material: Insulator - High Temperature Plastic, Contact - Phosphor Bronze, Plated - Gold
Buy the Buy Multicomp Pro PCB Socket Part Number 2200SB-20G-A1 Online
Purchase the PCB Socket 2200SB-20G-A1 online today for high-quality, durable connections crucial for industrial and electronic applications. This socket features gold-plated contacts and a heat-resistant plastic insulator, supporting 1A current and 50V voltage ratings. Its precise 1.27mm pitch and robust solder termination ensure a secure fit on your circuit boards. Ideal for industrial electronics, prototyping, and manufacturing, it offers maximum contact resistance of 20 microohms and insulation resistance of 1000 megaohms for dependable performance in demanding environments. Buy now to enhance your project reliability!
Order your Multicomp Pro Series2200SB-20G-A1 PCB socket today and enjoy secure, reliable connections for your electronic assemblies.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2200SB20GA1?
You can click on the BUY or RFQ button to purchase 2200SB20GA1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2200SB20GA1?
You can download the 2200SB20GA1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2200SB20GA1?
MULTICOMP PRO
