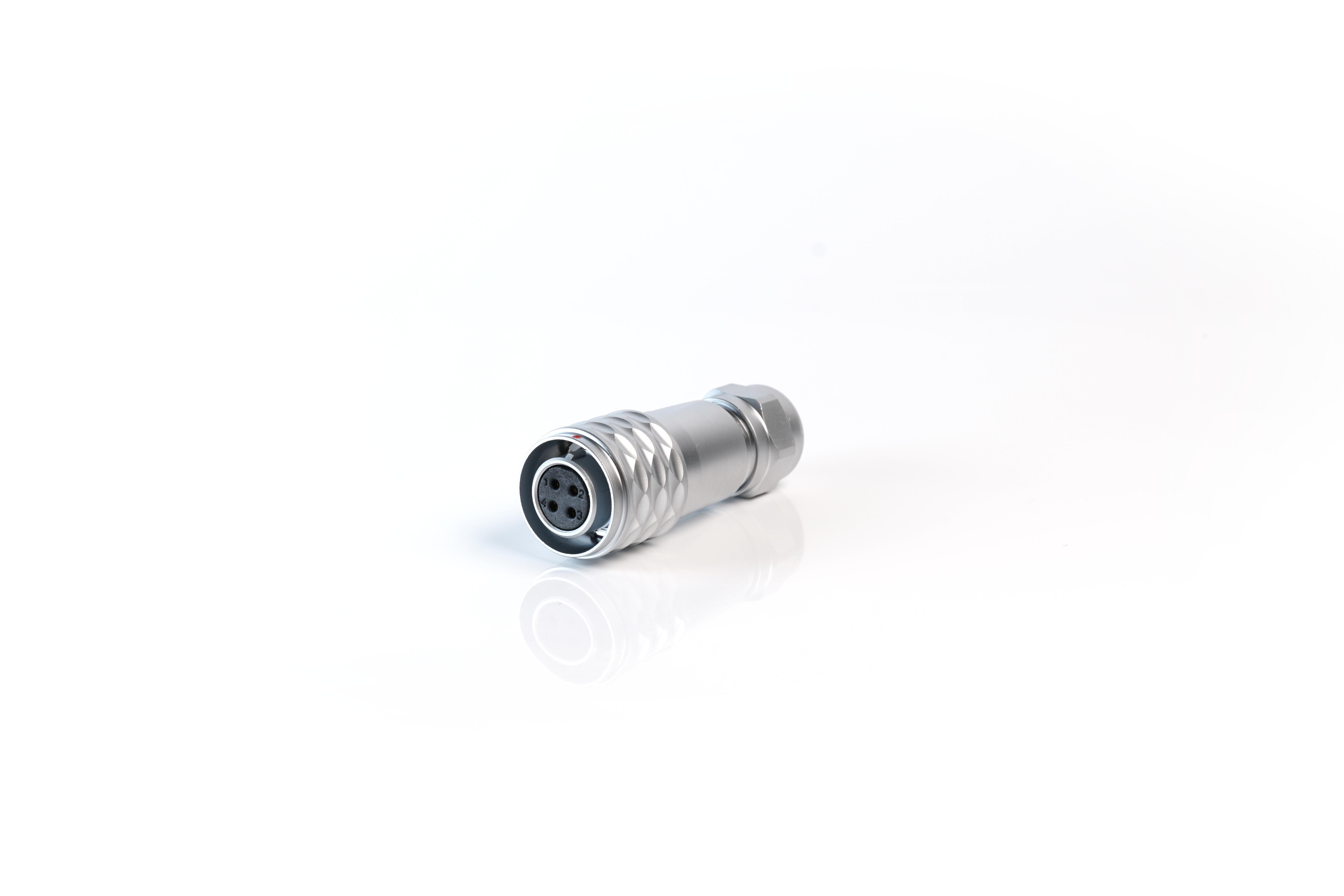

MULTICOMP-PRO MP002736 M12 Push-Pull Connector
The MP M12 push-pull connectors are made of chrome-plated brass, providing durable and attractive connections suitable for tough environments. Versatile in design, they come in panel mount, cable mount, and inline configurations, supporting quick connection with push-pull coupling. Weather-resistant with IP67 rating, they function well indoors and outdoors, fitting a 12mm cut-out. Available in 2, 4, 5, and 7 pole options, these solder-terminal connectors are ideal for automation, process control, medical, security, and industrial automation applications.
MULTICOMP-PRO MP002736 M12 Push-Pull Connector Specifications:
- Material: Chrome-plated brass
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Coupling: Push-pull
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Solder Termination: Yes
- Number of Contact Options: 2, 4, 5, 7
- Rated Current: 13A (2 contacts), 5A (others)
- Rated Voltage: 250V (2 contacts), 200V, 180V, 125V (others)
- Contact Diameter: 1mm - 1.6mm
- Cable Outer Diameter Range: 4mm to 8mm
- Dimensions: Suitable for 12mm cut-out, length approximately 19mm to 44mm
- Environmental: Suitable for outdoor use with weather-proof design
- Connection Types: Cable mount, inline, rear panel mount
Buy the Buy Multicomp Pro M12 Push-Pull Connectors Part Number MP002736 Online
Order the versatile M12 push-pull connectors from Multicomp Pro today to ensure reliable, rapid connections for automation, control, and industrial applications. Designed with durable chrome-plated brass and IP67 weatherproofing, these connectors support a variety of configurations including cable and panel mounts with quick-release coupling. Available in multiple poles and suitable for indoor and outdoor environments, they guarantee long-lasting performance and easy installation, making them an essential component for professionals in automation, process control, and industrial sites.
Buy Multicomp Pro MP002736 now and enjoy reliable, quick-connect M12 push-pull connectors for industrial automation and tough environment applications.
