MULTICOMP PRO 2200SB40GA1 PCB Socket

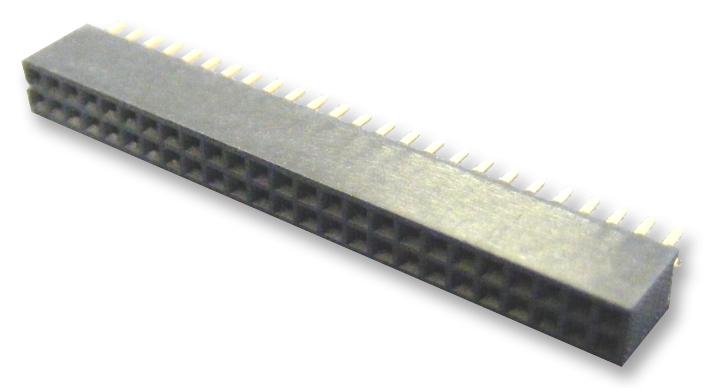

The 2200SB-40G-A1 is a 40-pin, two-row PCB socket with a 1.27mm pitch, featuring gold-plated phosphor bronze contacts and a high-temperature black plastic insulator. Designed for reliable board-to-board connections, it has vertical solder terminations and is rated for 50V and 1A. With a maximum contact resistance of 20 milliohms and insulation resistance of 1000 megaohms, it operates from -25°C to +105°C. Ideal for industrial use, the socket provides durable, high-quality connectivity in electronic assemblies.
MULTICOMP PRO 2200SB40GA1 PCB Socket Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 50V AC/DC
- Maximum Contact Resistance: 20 milliohms
- Minimum Insulation Resistance: 1000 megaohms
- Withstanding Voltage: 500V AC/Minute
- Operating Temperature Range: -25°C to +105°C
- Pitch Spacing: 1.27mm
- Number of Rows: 2
- Number of Contacts: 40
- Gender: Plug
- Contact Termination: Solder
- Connector Type: Board to Board
- External Length / Height: 4.5mm
- Material: High Temperature Plastic (Black)
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated
Buy the Multicomp Series PCB Socket: 2200SB-40G-A1
Purchase the high-performance PCB socket online today to experience reliable board-to-board connections with gold-plated contacts and a durable black insulator, suitable for industrial and electronic applications. Designed for easy soldering and maximum contact resistance of 20 milliohms, it supports operating temperatures from -25°C to +105°C. With a 1.27mm pitch and 40 contacts, this socket guarantees durability and high-quality performance, making it an essential component for complex electronic assemblies and industrial projects.
Order your Multicomp Series PCB Socket 2200SB-40G-A1 today and ensure durable, reliable connections for your industrial electronics projects.
