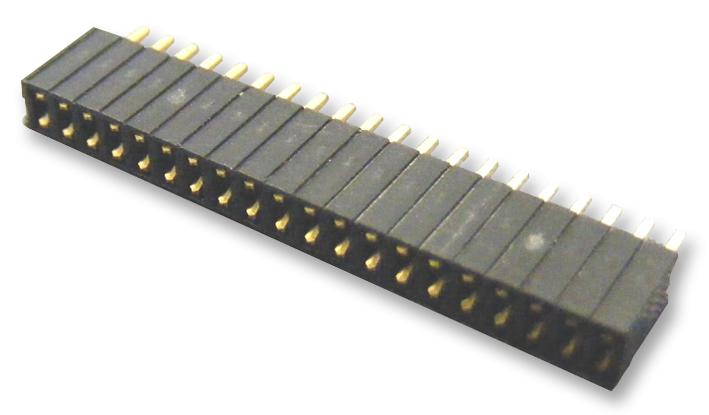

MULTICOMP PRO 2206SA1046 PCB Receptacle 1 Row
The MULTICOMP PRO 2206SA-10-46 is a through-hole mount PCB receptacle, part of the 2206SA series. This receptacle provides a robust and reliable connection solution for electronic circuits. Constructed with a high-temperature plastic insulator and brass contacts plated with gold, it ensures excellent electrical performance and durability. It is ideal for applications in industrial control systems, consumer electronics, and other areas where secure and dependable board-to-board connections are essential.
MULTICOMP PRO 2206SA1046 PCB Receptacle 1 Row Specifications:
- Current Rating: 1A AC / DC
- Voltage Rating: 50V AC / DC
- Max. Contact Resistance: 20mΩ
- Min. Insulation Resistance: 1,000MΩ
- Withstanding Voltage: 500V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator: High temperature plastic
- Insulator Colour: Black
- Contact: Brass Plated
- Plating: Gold plated
- A Dimension: 12.7 mm
- B Dimension: 10.16 mm
