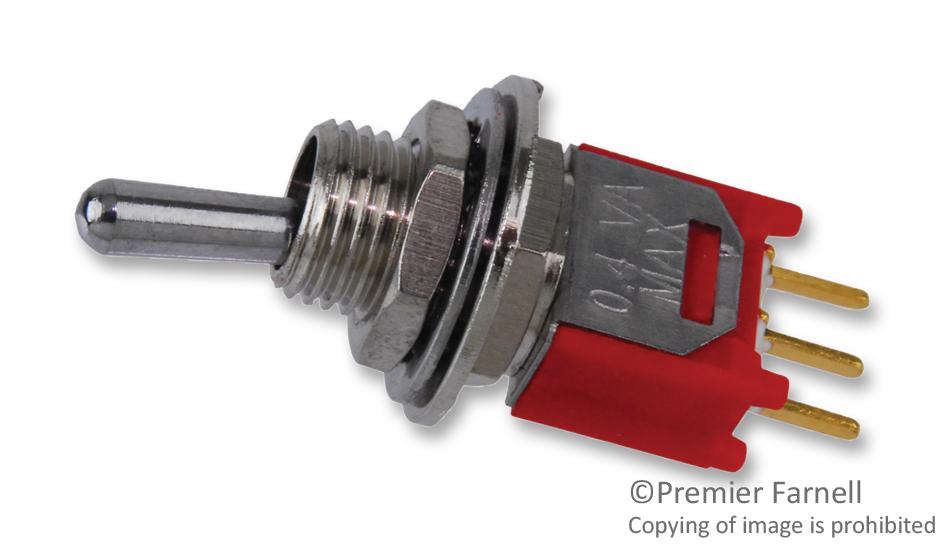

MULTICOMP PRO 2MS1T1B5M2RE Sealed Sub-Miniature Toggle Switch
The 2MS1 series from Multicomp Pro features sealed, single pole toggle switches in a sub-miniature size, suitable for various applications. These switches have a maximum contact resistance of 20 milliohms, operate within a temperature range of -30°C to 85°C, and have a contact rating of 100mA at 20VAC or 20VDC for silver contacts. They feature a brass, chrome-plated actuator and a brass, nickel-plated bushing. Contact options include silver or gold plating, depending on the order. These on-on switches have a minimum insulation resistance of 1000 megaohms and are rated for industrial, power management, and automation applications. Multicomp Pro products are rated 4.6 out of 5 stars, and come with a 12-month limited warranty.
MULTICOMP PRO 2MS1T1B5M2RE Sealed Sub-Miniature Toggle Switch Specifications:
- Contact Resistance: 20mΩ maximum at 2-4 V DC 100mA
- Mechanical Life: 30,000 cycles
- Insulation Resistance: 1,000MΩ minimum
- Dielectric Strength: 1,000V rms at sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass, tin plated
- Terminal/Contact Material: Silver or gold plated
- Contact Rating: 100mA at 20VAC/DC
- Contact Function: On-On, SPDT, DPDT options available
- Mounting: Panel mount with various bushing options
Buy the Multicomp Series Sub-Miniature Toggle: 2MS1T1B5M2RE
Discover the reliable performance of the Multicomp Series sub-miniature toggle switch, ideal for industrial, automation, and power management applications. With a contact resistance of just 20 milliohms, operating within -30°C to 85°C, and rated for 100mA at 20VAC/DC, it provides durability and consistent operation. Featuring a brass, chrome-plated actuator and optional gold plating on contacts, this switch ensures excellent conductivity and longevity. Easy to install with various bushing options, it comes with a 12-month warranty, making it the perfect choice for professionals seeking quality and dependability.
Order your Multicomp Series 2MS1T1B5M2RE sealed toggle switch today and enhance your industrial or automation project with reliable switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2MS1T1B5M2RE?
You can click on the BUY or RFQ button to purchase 2MS1T1B5M2RE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2MS1T1B5M2RE?
You can download the 2MS1T1B5M2RE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2MS1T1B5M2RE?
MULTICOMP PRO
