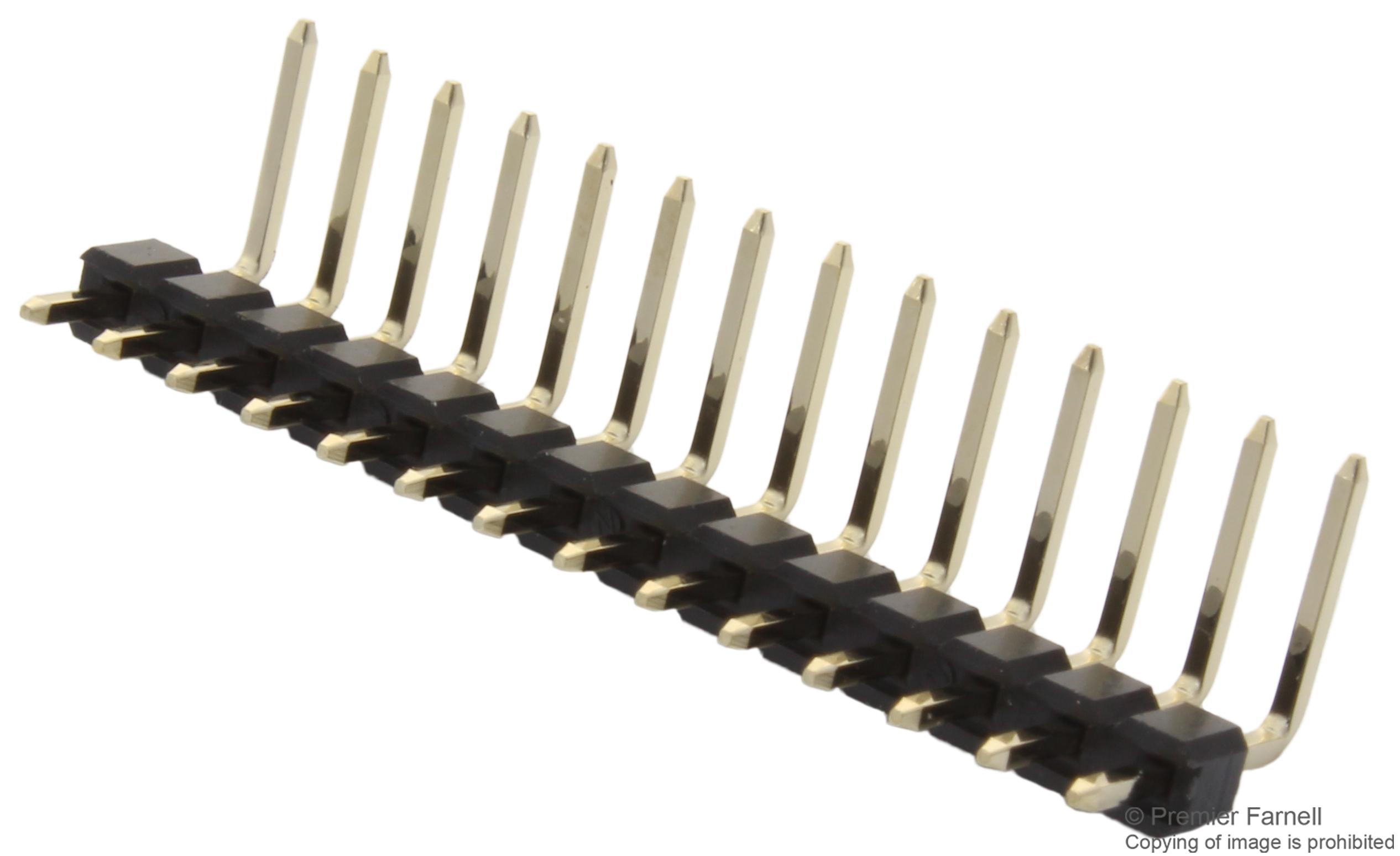

MULTICOMP PRO 2211R09G 2.54mm Pin Header
This 2.54mm single row right-angle through-hole header offers reliable connectivity for electronic assemblies. It features a durable copper alloy contact with gold plating, ensuring low contact resistance of 20mΩ max. Rated for 3A AC/DC at 250V, it withstands voltage up to 600V AC for one minute. Made from UL94V-0 PBT insulator with black color, it operates within -40°C to +105°C. Suitable for PCB mounting, it provides secure and stable electrical connections in various electronic projects and industrial applications.
MULTICOMP PRO 2211R09G 2.54mm Pin Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Material: Insulator - PBT (UL94V-0), Contact - Copper Alloy, Plating - Gold
- Dimensions: 2.54mm pitch, number of positions varies (7, 9, 14), page layout in millimeters
- PCB Mounting: Through hole, right angle configuration
Buy the Multicomp Series 2.54mm Pin Header: 2211R-09G
Enhance your electronic projects with our high-quality 2.54mm Pin Header, designed for reliable PCB connections. This right-angle through-hole header features durable gold-plated contacts that ensure low contact resistance and long-term stability. Rated for 3A and 250V, it withstands voltage up to 600V AC, making it suitable for various industrial and hobbyist applications. Crafted from UL94V-0 PBT insulator in black, it performs efficiently in temperatures from -40°C to +105°C, providing secure and dependable electrical connections for your devices.
Order your Multicomp Series 2.54mm Pin Header 2211R-09G today and upgrade your electronic assemblies with dependable, high-quality headers for reliable connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2211R09G?
You can click on the BUY or RFQ button to purchase 2211R09G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2211R09G?
You can download the 2211R09G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2211R09G?
MULTICOMP PRO
