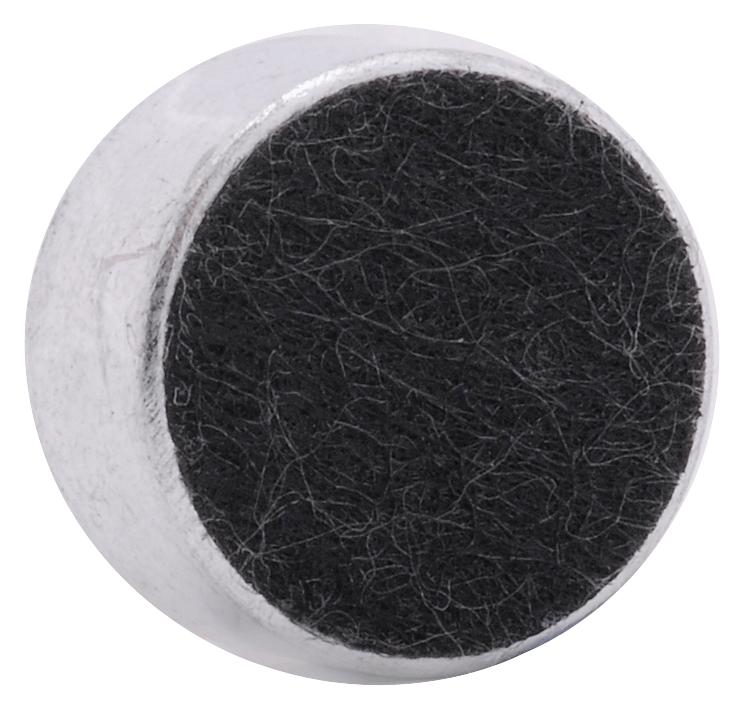

MULTICOMP-PRO ABM713RC Omni-directional Microphone
The Pro-SIGNAL ABM-713-RC is an omni-directional electret condenser microphone with PCB pins, designed for clear audio capture across 50 to 16,000 Hz frequency range. It features RoHS compliance, low noise signal output with a signal-to-noise ratio of 60 dB, and operates at a typical voltage of 1.5 to 3 V. Its compact dimensions and high sensitivity make it ideal for professional audio applications, including microphones, sound measurement, and model projects, ensuring reliable performance with a maximum current consumption of 2.7 mA.
MULTICOMP-PRO ABM713RC Omni-directional Microphone Specifications:
- Directivity: Omni-directional
- Frequency Range: 50 to 16,000 Hz
- Sensitivity: 1 V/Pa at 1 KHz
- Sensitivity Reduction: at 1.5 V - 3 V
- Output Impedance: 2.7 - 40.2 Ohms
- Maximum Operating Voltage: 3 V
- Standard Operating Voltage: 1.5 V
- Maximum Current Consumption: 2.7 mA
- Signal to Noise Ratio: 60 dB (A-weighted)
- Material: Electret type
- Storage Temperature: -25°C to +70°C
- Operating Temperature: 20°C to +60°C
- Dimensions: Millimetres (specific dimensions not provided, typical for PCB-mounted microphones)
Buy the Buy Pro-SIGNAL Microphone Part Number ABM-713-RC Online
Purchase the Pro-SIGNAL ABM-713-RC omni-directional electret condenser microphone online today. Designed for professional sound applications, it features a broad frequency response of 50 to 16,000 Hz, high sensitivity, and excellent noise performance with a 60 dB S/N ratio. Its compact PCB-pin design makes installation straightforward, and RoHS compliance ensures environmentally safe usage. Perfect for audio measurement, sound recording, and electronic projects, this microphone guarantees dependable operation, low power consumption, and versatility for various applications.
Order your Pro-SIGNAL ABM-713-RC omni-directional microphone today and enhance your audio projects with reliable, high-quality sound capture.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO ABM713RC?
You can click on the BUY or RFQ button to purchase ABM713RC from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part ABM713RC?
You can download the ABM713RC datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of ABM713RC?
MULTICOMP-PRO
