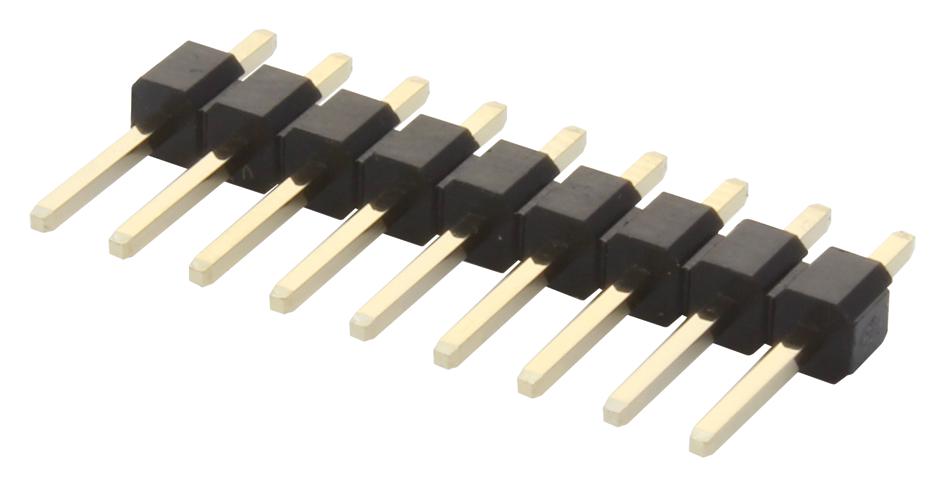

MULTICOMP PRO 2211S22G 2.54mm Pin Header
This 2.54mm pin header features a single row, vertical through-hole design suitable for PCB mounting. Constructed with a UL94V-0 rated black PBT insulator and gold-plated copper alloy contacts, it offers reliable electrical performance with a current rating of 3A and a voltage rating of 250V. Its withstand voltage is 600V AC for one minute, and it operates within a temperature range of -40°C to +105°C. Suitable for assembly in various electronic projects, it ensures durability and RoHS compliance for environmentally friendly applications.
MULTICOMP PRO 2211S22G 2.54mm Pin Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: PBT (UL94V-0)
- Insulator Colour: Black
- Contact Material: Copper Alloy
- Plating: Gold Plated
- Number of Positions: 22
- Connector Type: Through Hole, Vertical, Single Row
- Dimensions: 2.54mm pitch, length varies with contacts
- RoHS Compliant
Buy the Multicomp Series 2.54mm Pin Header: 2211S22G
Purchase your Multicomp Series 2.54mm Pin Header 2211S22G today online and enjoy fast delivery, competitive pricing, and assured quality for your electronic projects. Designed for through-hole PCB mounting with a robust gold-plated contact system, it provides dependable electrical performance rated at 3A and 250V. Its UL94V-0 rated PBT insulator ensures safety and durability, while RoHS compliance confirms environmental friendliness. Perfect for engineers and hobbyists seeking reliable, easy-to-install headers for durable electronic connections in various industrial and DIY applications.
Order your Multicomp Series 2.54mm Pin Header 2211S22G today and ensure your electronic assemblies have reliable and durable connections with ease.
