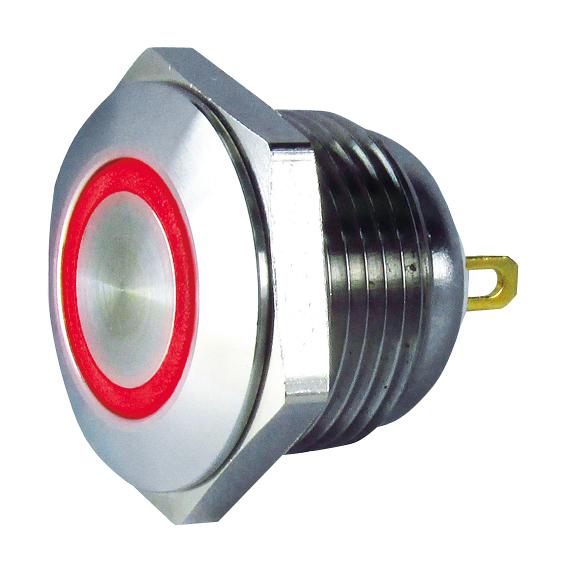

MULTICOMP PRO MC010874 Vandal Resistant Switch
This vandal-resistant switch features illumination with options for ring, domed, or prominent top types, designed for panel mount with a 16mm hole. Made from stainless steel, it ensures durability and resistance against vandalism, with a contact configuration of 1NO. It offers rated voltage of 48V DC, LED voltage of 12V with green, red, and blue options. The switch withstands high dielectric strength, has a mechanical life of 1,000,000 cycles, and an electrical life of 50,000 cycles. Suitable for industrial control panels needing robust, waterproof, and illuminated switching solutions.
MULTICOMP PRO MC010874 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colours: Green, Red, Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 200m/s² operating, 500m/s² damage
- Mechanical Life: 1,000,000 cycles momentary, 250,000 maintained
- Electrical Life: 50,000 cycles
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Multicomp Vandal Resistant Switch – Reliable Illumination for Industrial Applications
Order the vandal-resistant illuminated switch today and enhance your control panels with vandal-proof durability, bright LED options, and robust stainless steel construction. Designed for industrial environments, it offers superior resistance to impact, moisture, and vandalism. With multiple top options, including ring, domed, and prominent styles, this switch provides flexible installation and reliable operation. Its high dielectric strength and extensive life cycles ensure lasting performance, making it the ideal choice for demanding control systems, automation equipment, and industrial safety panels. Purchase online now for quick delivery and consistent quality.
Buy multicomp vandal-resistant illuminated switch now and experience unmatched durability with long-lasting LED illumination and a resistant design for challenging environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010874?
You can click on the BUY or RFQ button to purchase MC010874 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010874?
You can download the MC010874 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010874?
MULTICOMP PRO
