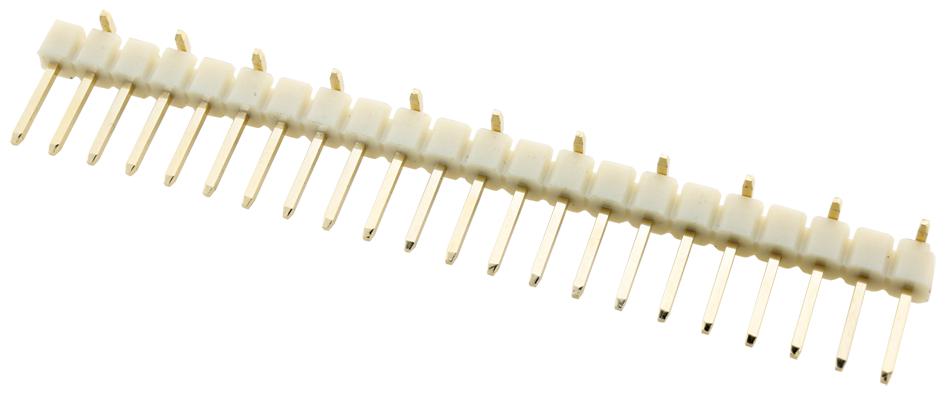

MULTICOMP PRO 2211SM22GB1TB Vertical SMD Header
The 2.54mm vertical SMD header is a reliable connection component designed for easy PCB mounting in electronic assemblies. With options ranging from 3 to 24 pins, it features high-temperature-resistant nylon insulator, gold or tin plating for corrosion resistance, and electrical ratings of up to 250V AC/DC and 3A current. Perfect for compact, space-saving designs, these staggered, single-row headers are RoHS compliant, ensuring environmental safety, and are ideal for a broad range of industrial and consumer applications requiring secure connections with precise pin spacing.
MULTICOMP PRO 2211SM22GB1TB Vertical SMD Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials and Finish: Copper Alloy, Gold or Tin Plated
- Insulator: High Temp. Nylon 6T UL94V-0, Ivory color
- Dimensions: 2.54mm pitch, various counts from 3POS to 24POS, staggered single row
- RoHS Compliant
Buy the Multicomp Series 2.54mm Vertical SMD Header: 2211SM22GB1TB
Explore the high-quality 2.54mm vertical SMD header, perfect for reliable PCB connections. Featuring optional gold or tin plating for superior corrosion resistance, it supports up to 250V and 3A, with a temperature range from -40°C to +105°C. Its high-temperature nylon insulator ensures stability in demanding environments, with various pin configurations from 3 to 24 positions. This RoHS compliant connector is ideal for industrial, electronics, and consumer device applications, offering easy installation and robust performance for your assembly needs.
Get Multicomp Series 2211SM22GB1TB today—designed for secure PCB connections and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2211SM22GB1TB?
You can click on the BUY or RFQ button to purchase 2211SM22GB1TB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2211SM22GB1TB?
You can download the 2211SM22GB1TB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2211SM22GB1TB?
MULTICOMP PRO
