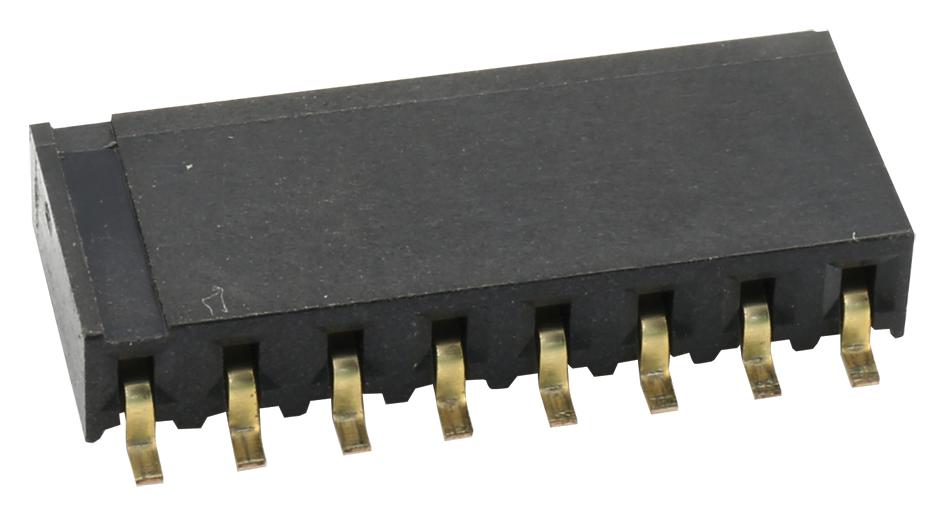

MULTICOMP PRO 2212BR08GSMTR PCB Socket
This PCB socket features a 2.54mm horizontal entry design suitable for SMD mounting, ideal for compact electronic assemblies. Constructed with high-temperature plastic insulator (LCP UL94V-0) and gold-plated phosphor bronze contacts, it offers reliable electrical connectivity. With a current rating of 3A AC/DC and voltage capacity of 250V, it withstands voltages up to 600V AC for a minute, ensuring safety and durability. The socket supports various pin counts from 2 to 20 positions, with precise dimensions for easy integration into PCB layouts, making it suitable for modern electronic devices.
MULTICOMP PRO 2212BR08GSMTR PCB Socket Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: High Temp. Plastic (LCP UL94V-0)
- Contact Material: Phosphor Bronze
- Finish: Gold Plated
- Dimensions: Varies by model, e.g., 2POS 5.08mm, 3POS 7.62mm, 4POS 10.16mm, etc.
- Compact design suitable for SMD applications
- Horizontal entry PCB socket with various pin counts
- RoHS compliant
Buy the Buy Multicomp PCB Socket Part Number 2212BR08GSMTR Online
Order the Multicomp PCB Socket with part number 2212BR08GSMTR online today and enhance your electronic projects with high-quality, reliable connectors. Designed for precise SMD applications with a 2.54mm pitch, this socket features gold-plated contacts, high-temperature plastic insulators, and a robust build suitable for demanding environments. Whether you're working on prototypes or production runs, this socket ensures secure connections with a current rating of 3A and voltage capacity of 250V. Easy to install, it helps streamline your assembly process while providing excellent electrical performance, safety, and durability.
Buy Multicomp 2212BR08GSMTR now and experience reliable electrical connectivity in compact electronic assemblies.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2212BR08GSMTR?
You can click on the BUY or RFQ button to purchase 2212BR08GSMTR from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2212BR08GSMTR?
You can download the 2212BR08GSMTR datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2212BR08GSMTR?
MULTICOMP PRO
