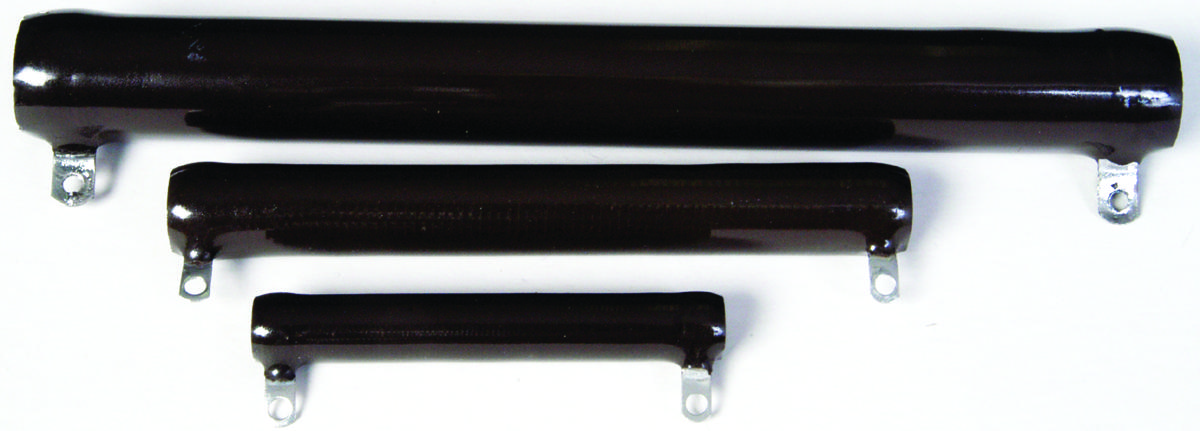

MULTICOMP-PRO MC14681 Wire Wound Resistor
The MC14681 is a 100-ohm adjustable wire-wound resistor with a tubular ceramic core and lead-free vitreous enamel coating, designed for high-power applications. It features solder-coated radial lug terminals for reliable connections and has a power rating based on 25°C free air conditions, with wattage reducing proportionally at higher temperatures. With its robust construction and high dielectric withstand voltage up to 3000V AC, it ensures durability and performance in industrial environments. Ideal for precise current limiting and resistor networks, this resistor is part of the Multicomp Pro line, known for quality and reliability.
MULTICOMP-PRO MC14681 Wire Wound Resistor Specifications:
- Material: Lead-free vitreous enamel coating, tubular ceramic core
- Resistance: 100 ohms
- Power Rating: Based on 25°C free air environment, with overload capacity 10 times rated wattage for 5 sec
- Temperature Coefficient: +400 ppm/°C (below 200), +260 ppm/°C (above 200)
- Dielectric withstand voltage: 1000V AC (25W, 50W, 100W), 3000V AC (225W)
- Terminals: Solder-coated radial lug
- Dimensions: Length 0.563 inches, Diameter 0.313 inches, Ceramic core diameter 0.25 inches
- Environment: RoHS compliant, I-compatible
- Application: High-power resistors, power electronics, industrial equipment
Buy the Multicomp 14681 – Reliable Wire-wound Resistor for Industrial Applications
Purchase the high-quality wire-wound resistor now available online. Designed with a ceramic core and vitreous enamel coating, it provides excellent stability and thermal performance. Suitable for industrial electronics, power supplies, and high-power circuits, this resistor offers reliable electrical characteristics and robustness. With a resistor value of 100 ohms and a maximum dielectric withstand voltage up to 3000V AC, it ensures safety and durability under demanding conditions. Buy now and enhance your electrical projects with this durable resistor.
Get Multicomp 14681 today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC14681?
You can click on the BUY or RFQ button to purchase MC14681 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC14681?
You can download the MC14681 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC14681?
MULTICOMP-PRO
