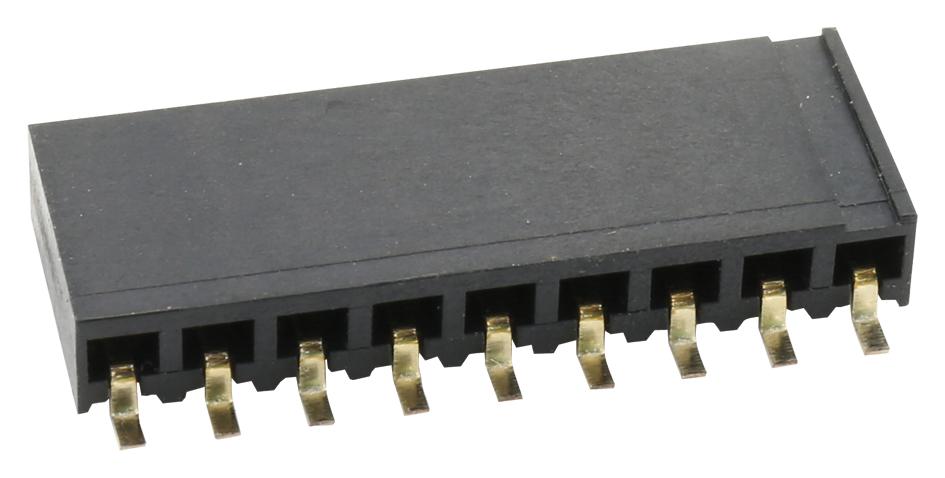

MULTICOMP PRO 2212BR10GSMTR PCB Socket
The 2.54mm PCB Socket is a surface-mount device designed for horizontal entry, suitable for 1-row configurations ranging from 2 to 20 positions. Constructed with high-temperature plastic insulators and gold-plated phosphor bronze contacts, it offers reliable electrical connections with a current rating of 3A AC/DC and voltage rating of 250V AC/DC. Its high insulation resistance, withstand voltage of 600V AC, and operating temperature range of -40°C to +105°C make it ideal for compact electronic applications requiring durability and precision. Compatible with standard PCB layouts, this socket supports a wide variety of positional configurations.
MULTICOMP PRO 2212BR10GSMTR PCB Socket Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: High Temp. Plastic (LCP UL94V-0)
- Contact Material: Phosphor Bronze
- Finish: Gold Plated
- Dimensions vary with number of positions, e.g., 10POS: 12.7mm A, 10.16mm B
Buy the Multicomp Series 2.54mm Horizontal PCB Socket: 2212BR10GSMTR
Order the Multicomp Series 2.54mm PCB Socket with 10 positions online today. Featuring SMD design, gold-plated contacts, high-temp plastic insulator, and reliable electrical properties suitable for compact electronic projects. Perfect for engineers and hobbyists seeking high quality, durability, and precise connections. Easy to install on PCB boards, supporting a voltage rating of 250V AC/DC and a current of 3A. Enhance your electronics assembly with this robust, versatile socket, available for quick purchase online at competitive prices.
Get Multicomp Series 2.54mm PCB Socket 2212BR10GSMTR today—designed for reliable connections with gold-plated contacts and high temperature resistance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2212BR10GSMTR?
You can click on the BUY or RFQ button to purchase 2212BR10GSMTR from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2212BR10GSMTR?
You can download the 2212BR10GSMTR datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2212BR10GSMTR?
MULTICOMP PRO
