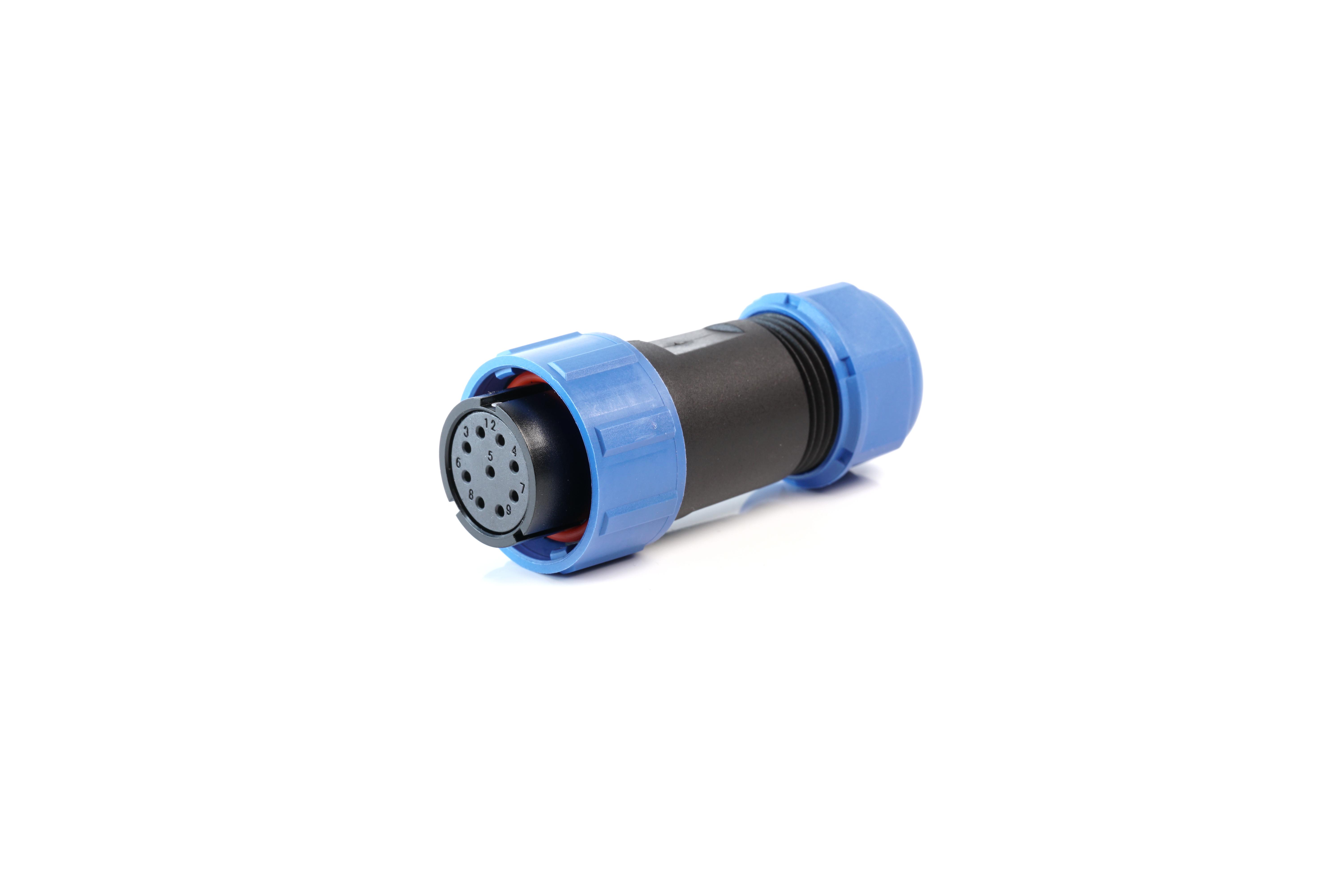

MULTICOMP PRO MP002677 industrial connector
The MP-T21 IP67 series offers durable, weatherproof connectors with bayonet coupling for quick, secure connections in outdoor and indoor applications. Available in panel mount, cable mount, and inline configurations, these connectors support 2 to 12 poles with solder or screw terminations. Designed for a 21mm cut-out, they feature nylon shells, gold-plated brass contacts, and an IP67 rating, ensuring protection against dust and water. Suitable for automation, medical devices, security, and industrial automation, the series includes an IP67 cap for added environmental resistance.
MULTICOMP PRO MP002677 industrial connector Specifications:
- Material: Nylon66 shell, brass contacts with gold plating
- Ingress Protection: IP67 for dust and water resistance
- Coupling: Bayonet locking mechanism for quick connection
- Temperature Range: -40°C to +80°C
- Contact Diameter: 2-3 mm depending on pole count
- Rated Current: Up to 30A for 2-4 pole, 15A for higher
- Rated Voltage: Up to 500V AC
- Test Voltage: 1500V AC for 1 minute
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12 poles
- Termination: Solder or screw connections
- Cable Outer Diameter: Up to 12 mm
- Mating Cycles: 500
- Additional: IP67 dust cap available, suitable for outdoor, automation, security, and test devices
Buy the Multicomp Series IP67 Connector: MP002677
Secure your applications with the high-quality Multicomp IP67 connector MP002677. Designed for rugged outdoor and industrial use, it features a bayonet coupling, IP67 protection, and reliable solder and screw terminations. Available in multiple configurations from 2 to 12 poles, this connector ensures quick, safe connections in harsh environments. Perfect for automation, medical, security, and testing applications, it includes an optional IP67 cap for added environmental sealing. Purchase online today for dependable performance and easy installation.
Buy Multicomp IP67 connector MP002677 now and experience unmatched reliability and performance in outdoor and industrial environments.
