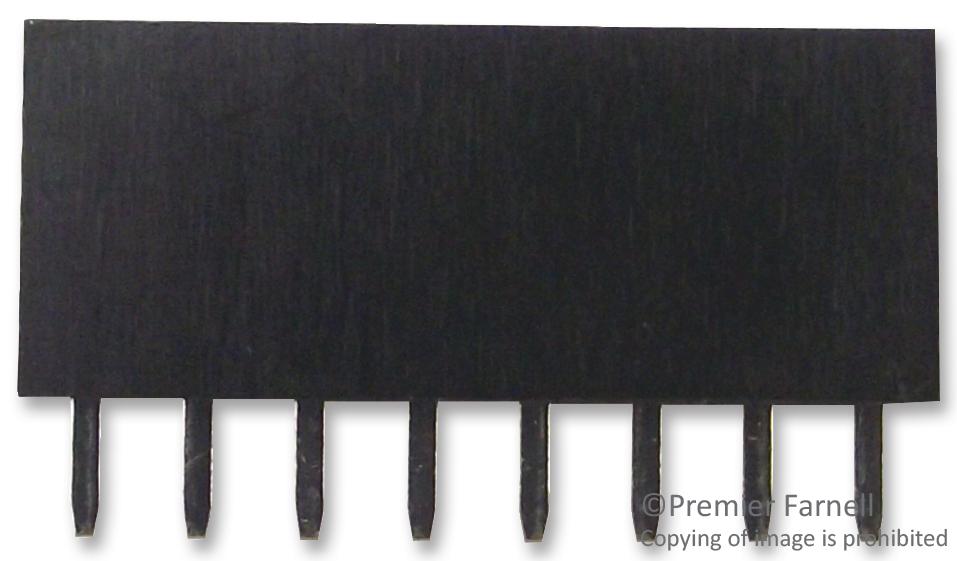

MULTICOMP PRO 2212S18SG85 PCB Socket Single Row
The MULTICOMP PRO 2212S-18SG-85 is a 2.54mm pitch PCB socket designed for secure and reliable connections in electronic circuits. This single-row, straight socket features 18 contacts, making it suitable for a variety of applications including industrial control systems, instrumentation, and consumer electronics. Constructed with a PBT insulator and copper alloy contacts with selective gold plating, it ensures excellent electrical performance and durability. The socket's robust design and compact size make it an ideal choice for space-constrained applications.
MULTICOMP PRO 2212S18SG85 PCB Socket Single Row Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Max. Contact Resistance: 20mΩ
- Min. Insulation Resistance: 1,000 MΩ
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: PBT
- Contact Material: Copper alloy
- Contact Finish: Selective gold plated
- General Tolerance: 0.X=±0.2, .XX=±0.15
- Number of Contacts: 18
- A Dimension: 46.22mm
- B Dimension: 43.18mm
