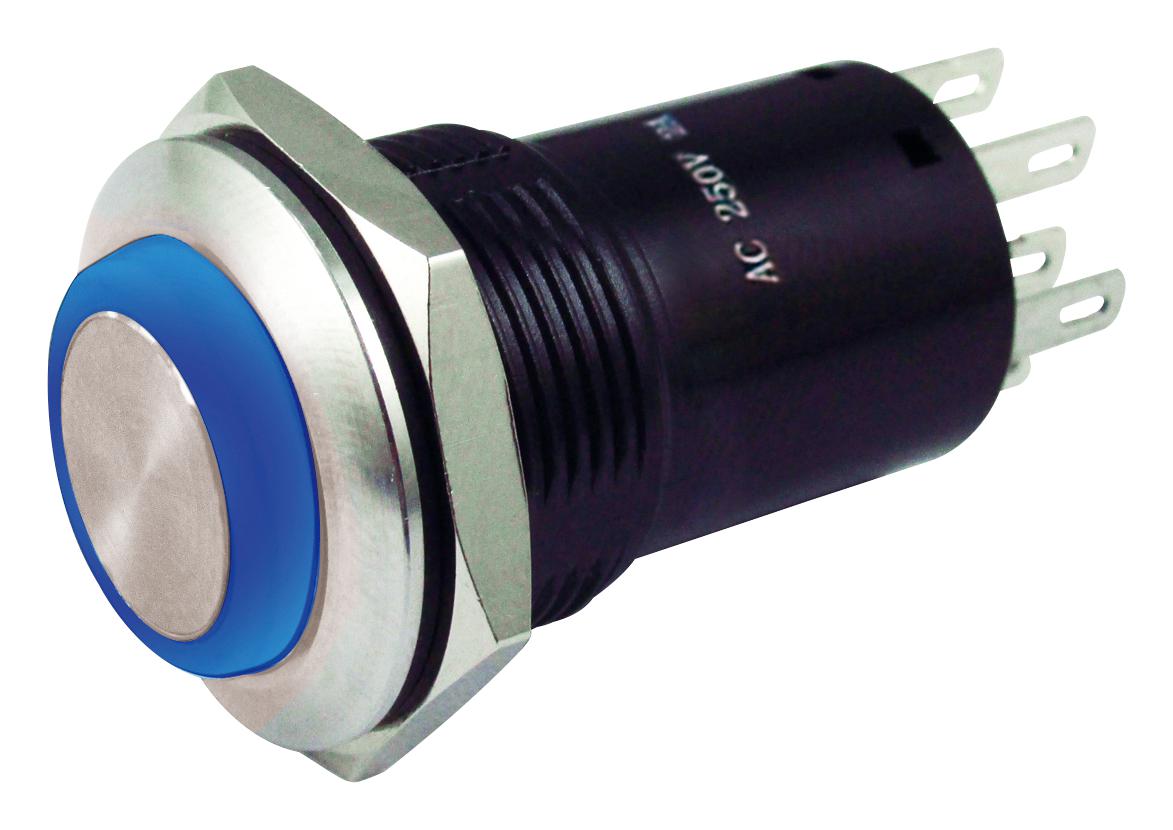

MULTICOMP PRO MC010941 Vandal Resistant Switch
The illuminated vandal resistant switch is designed for industrial environments, featuring stainless steel construction, LED illumination in blue, green, or red, and a robust IP65 protection rating. Suitable for mounting in 19mm holes, it supports various contact configurations like 1NO + 1NC, 2NO + 2NC, with maintained or momentary operation options. The switch is rated for 250V, 5A, with a dielectric strength of 2,000V AC. Its compact design and high durability make it ideal for control panels, industrial machinery, and vandal-prone areas, ensuring reliable operation under demanding conditions.
MULTICOMP PRO MC010941 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Blue / Green / Red
- Switch Operation: Maintained or Momentary
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial), 100MO Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 200 m/S2 operating, 500 m/S2 damage limits
- Mechanical Life: 1,000,000 cycles (momentary), 100,000 cycles (maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP65
- Terminal Style: Solder terminal
- Weight: 122g
- Panel Thickness Compatibility: 0.5mm to 6mm
- Terminal Width: 3x0.5mm
- Gasket Type: Included
- Hex Nut: Included
Buy the Multicomp Vandal Resistant Switch – Reliable Industrial Switch for Control Panels
Purchase the multicomp vandal resistant illuminated switch MC010941 online today to ensure your industrial control panels are equipped with a robust, reliable, and vandal-proof switch. Its stainless steel construction provides high durability, while the IP65 rating guarantees protection against dust and water ingress. Ideal for demanding environments, this switch features multiple contact configurations, LED illumination for clear visibility, and supports mounting in 19mm holes. Secure your control systems now with this high-quality, long-lasting vandal-resistant switch designed for industrial applications.
Order your multicomp vandal resistant switch MC010941 today and equip your control panels with a durable, IP65-rated illuminated switch that excels in vandal-prone environments.
