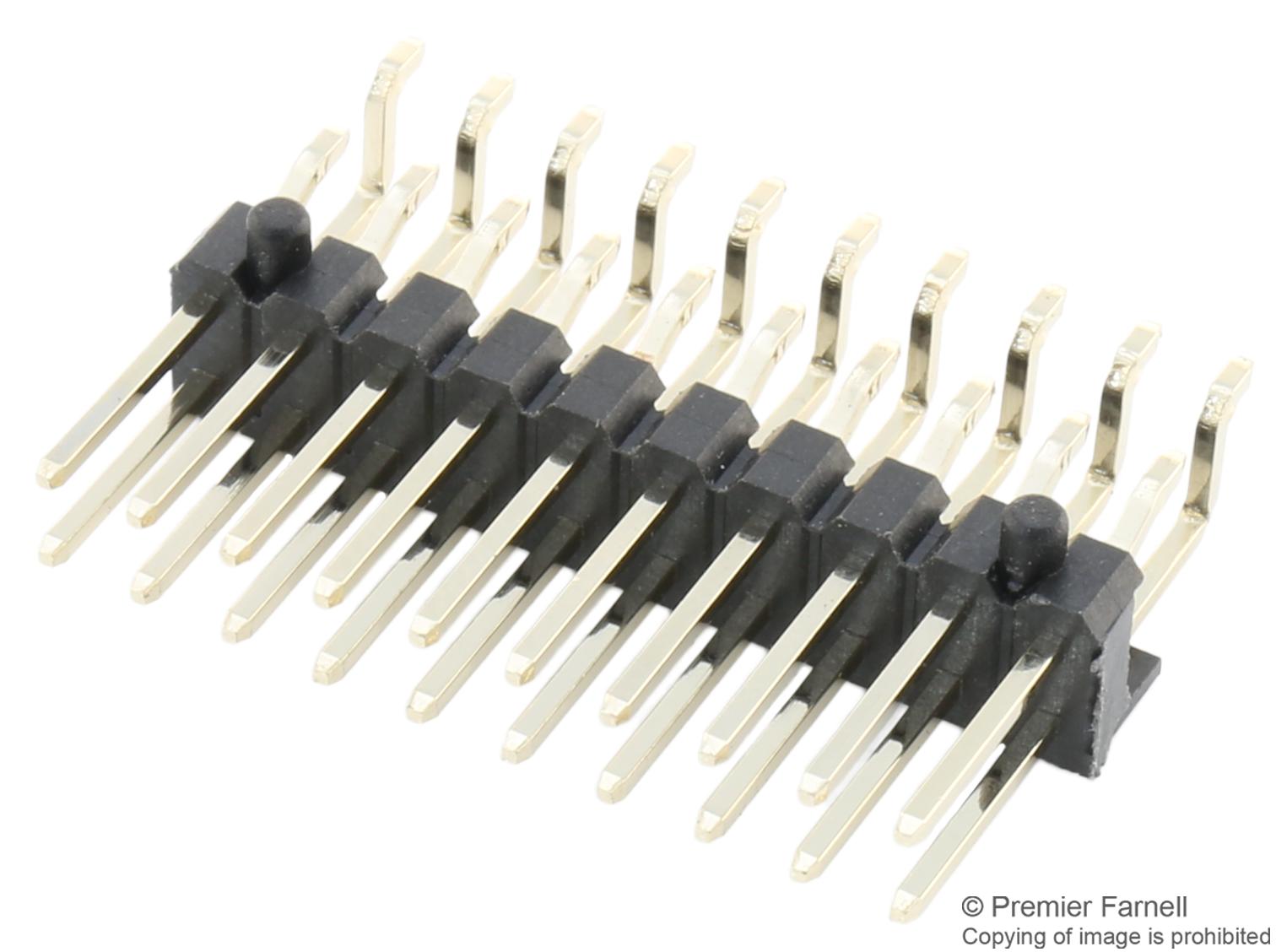

MULTICOMP PRO 2213R20GSM7576APR Right Angle Pin Header
The MULTICOMP PRO 2213R-20G-SM-7576APR is a right-angle pin header designed for surface mount applications. It offers a 2.54mm pitch and a double-row configuration with 20 positions, providing a reliable connection solution for PCBs. The header is constructed with high-temperature plastic (Nylon 6T UL94V-0) for the insulator and brass with gold plating for the contacts, ensuring durability and excellent electrical performance. It is commonly used in a wide range of electronic devices and industrial equipment where space is limited and a right-angle connection is required.
MULTICOMP PRO 2213R20GSM7576APR Right Angle Pin Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 500V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator: High Temp. Plastic (Nylon 6T UL94V-0)
- Insulator Colour: Black
- Contact Material: Brass
- Finish: Gold Plated
- A Dimension: 22.86mm
- B Dimension: 25.4mm
- Positions: 20
- Rows: 2
