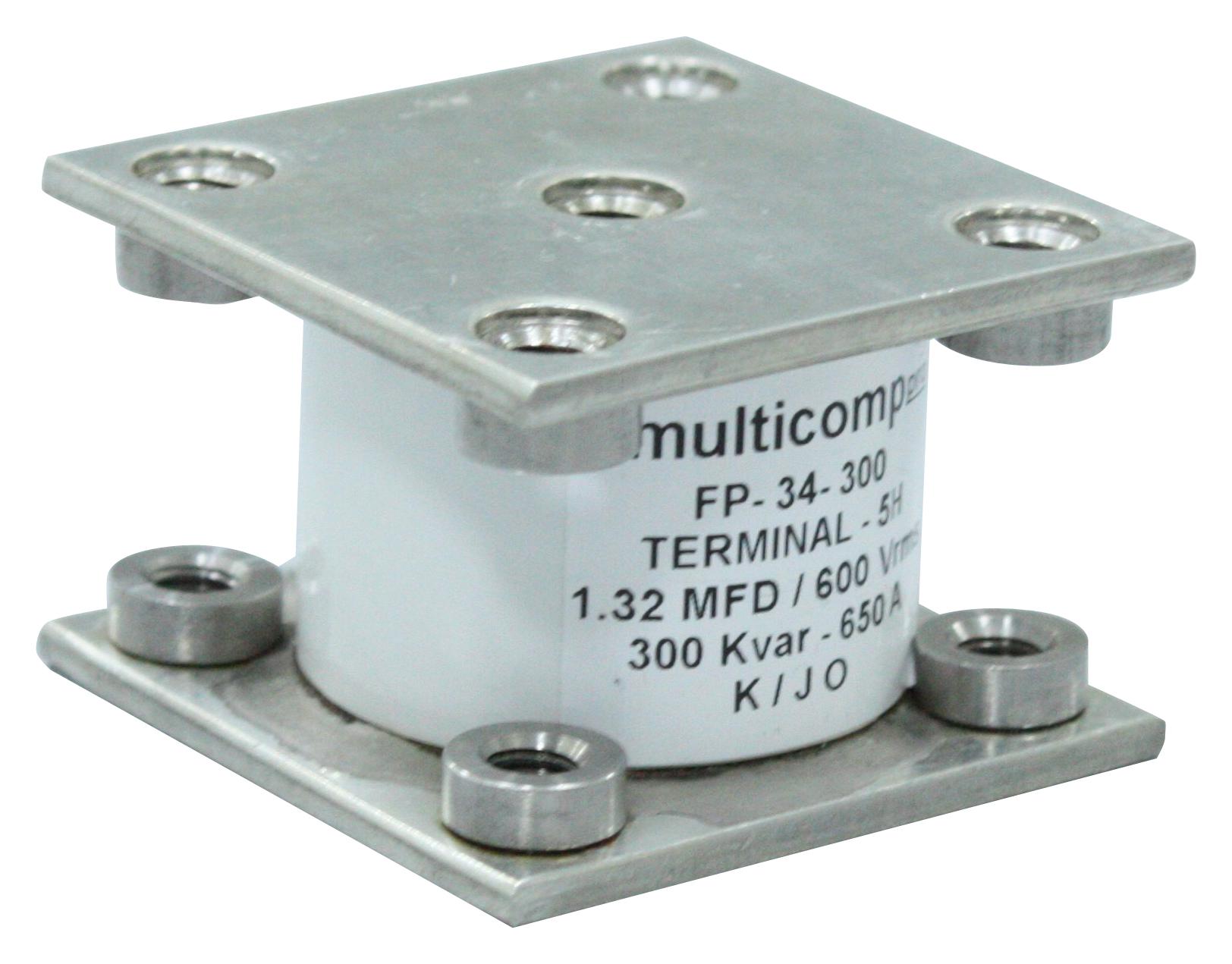

MULTICOMP PRO MP004052 Power Film Capacitor
Power film capacitors with screw or stud terminals designed for high-frequency applications up to 700kHz. These self-healing capacitors feature polypropylene dielectric, RoHS compliance, and are flame retardant with UL94-V0 standard. They operate at maximum core temperature of 85°C, with a capacitance tolerance of +10%, and are conduction cooled for reliable performance. Suitable for power electronic systems, these capacitors provide stable operation with various voltage and current ratings, and are available in multiple capacitance values including 0.33, 0.66, 1.2, and 2.4 MFD, featuring robust dimensions and terminal styles for easy installation.
MULTICOMP PRO MP004052 Power Film Capacitor Specifications:
- Capacitance: 0.33 MFD, 0.66 MFD, 1.2 MFD, 2.4 MFD
- Voltage: up to 600 VRMS
- Current: up to 650 ARMS
- Operating frequency: up to 700 kHz
- Temperature rating: maximum core temperature 85°C
- Dielectric: Polypropylene
- RoHS compliant, UL94-V0 flame retardant
- Tightening torque: 20 Nm max
- Dimensions vary depending on model, typical length approximately 50 mm, width around 34 mm
- Terminal style: Screw/Stud terminals
- Conduction cooled design for high reliability
- Power ratings: up to 300 KVAR
- Frequency derating for voltage and current at high frequencies
Buy the Multicomp Series Power Film Capacitors: MP004052
Purchase the Multicomp Series Power Film Capacitor MP004052 online today and benefit from high-frequency stability, durable polypropylene dielectric, and RoHS compliance. These self-healing, conduction-cooled capacitors are ideal for power electronic applications, providing reliable performance at voltages up to 600 VRMS and currents up to 650 ARMS. Their flame-retardant UL94-V0 standard and robust dimensions ensure safe and easy installation. Ideal for engineers and technicians seeking high-quality power capacitors for demanding environments. Order now to ensure dependable operation in your power electronic systems.
Order your Multicomp Series Power Film Capacitors MP004052 today and ensure your power systems operate reliably with high-frequency performance and durable construction.
