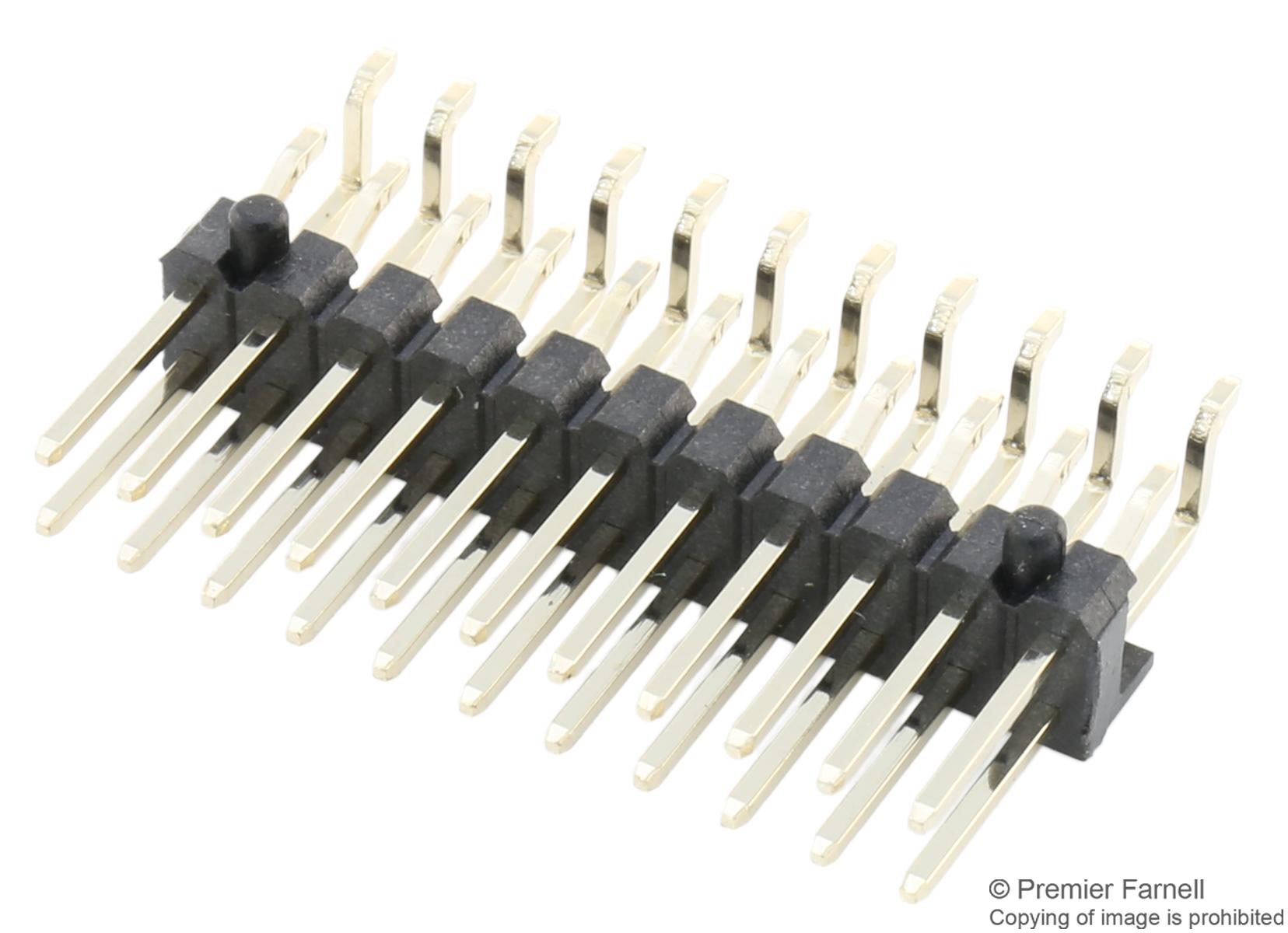

MULTICOMP PRO 2213R22GSM7576APR Right Angle Pin Header
The MULTICOMP PRO 2213R-22G-SM-7576APR is a right-angle, dual-row pin header designed for surface mount technology. Its 2.54mm pitch and 22-position configuration make it ideal for connecting components in densely populated circuit boards. Constructed with high-temperature Nylon 6T UL94V-0 insulator and gold-plated brass contacts, this header ensures reliable signal transmission and durability in various industrial and commercial applications. The right-angle design minimizes space requirements and simplifies board layout.
MULTICOMP PRO 2213R22GSM7576APR Right Angle Pin Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 500V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator: High Temp. Plastic (Nylon 6T UL94V-0)
- Insulator Colour: Black
- Contact Material: Brass
- Finish: Gold Plated
- A Dimension: 25.4mm
- B Dimension: 27.94mm
