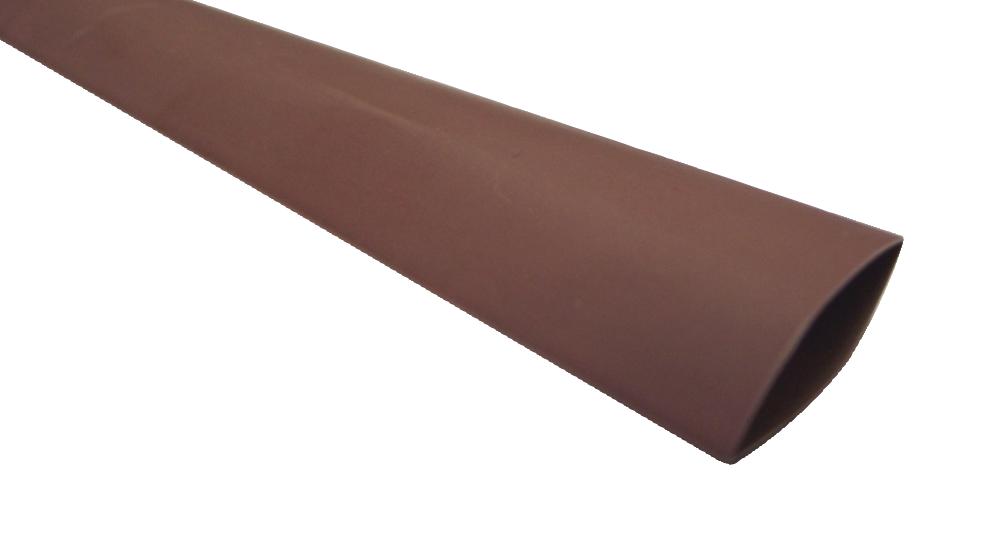

MULTICOMP PRO PP002786 heat shrink tubing
This 2:1 normal wall heat shrink tubing offers excellent flexibility and lower temperature shrinking. Made of halogen-free, radiation-cross-linked polyolefin, it is suitable for protecting temperature-sensitive components such as wire and cable jackets. It has a shrink ratio of 2:1, with a full recovery temperature of 120°C and an operating temperature range of -55°C to +125°C. The tubing demonstrates good mechanical and electrical performance, including tensile strength of 210.4 MPa and dielectric strength of 215 kV/mm, making it ideal for insulation and environmental protection in demanding applications.
MULTICOMP PRO PP002786 heat shrink tubing Specifications:
- Material: Radiation cross-linked polyolefin
- Flammability: Meets FMVSS302
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Longitudinal Shrinkage: 45%
- Operating Temperature: -55°C to +125°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 120°C
- Shrink Ratio: 2:1
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21x10^4 ohm/cm
- Standard Colors: Black, Brown, Blue, White, Red, Yellow, Green, Grey, Grey/Yellow, Clear
- Dimensions: Various diameters from 1.6mm to 50.8mm, length typically 1.2m or 5m, wall thickness approx. 0.2-0.5mm, depending on size
Buy the PrO-POWER Series 2:1 Heatshrink Tubing: PP002786
Order the PrO-POWER PP002786 heat shrink tubing online today to benefit from rapid delivery and guarantee of quality. Designed to provide superior insulation and protection for electrical wires and components, this 2:1 shrink ratio tubing features excellent mechanical strength and electrical insulation properties. Made from halogen-free, radiation-cross-linked polyolefin, it shrinks at lower temperatures, making it ideal for sensitive applications. Suitable for protecting cables in a wide temperature range from -55°C to +125°C, ensuring durability and safety across many industrial uses.
Get PrO-POWER PP002786 today—built for exceptional flexibility and reliable insulation in demanding environments.
