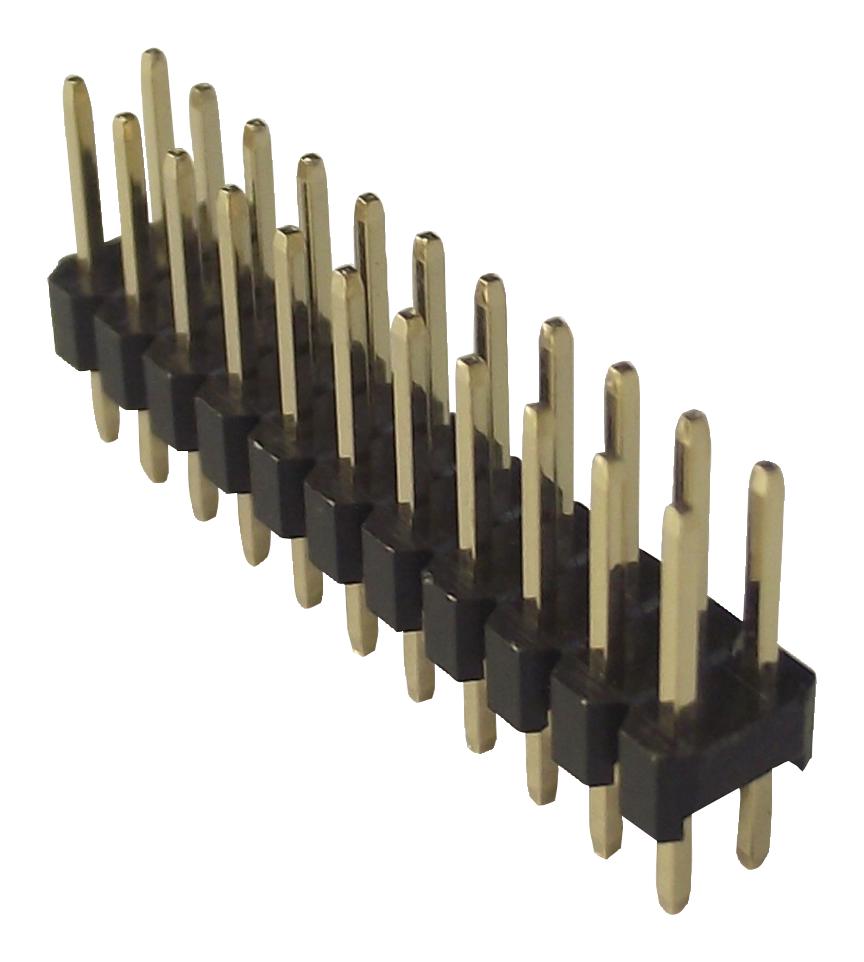

MULTICOMP PRO 2213S22G 22 Way Board to Board Connector
The MULTICOMP PRO 2213S-22G is a robust board-to-board connector designed for secure and reliable connections between printed circuit boards. Featuring 22 contacts arranged in a double-row configuration, this connector offers a compact and efficient solution for various electronic applications. The gold-plated copper alloy contacts ensure low contact resistance and excellent signal transmission, while the high-temperature plastic insulator provides insulation and durability. It is suitable for applications requiring a voltage rating of 250V AC and a current rating of 3A, and is designed to withstand temperatures from -40°C to +105°C. Its solderable contacts simplify integration into PCB designs.
MULTICOMP PRO 2213S22G 22 Way Board to Board Connector Specifications:
- Series: 2213S
- Connector Type: Board to Board
- Pitch Spacing: 2.54mm
- No. of Rows: 2
- No. of Contacts: 22
- Gender: Plug
- Contact Termination: Solder
- Contact Resistance: 20mΩ
- Current Rating: 3A
- Insulation Resistance: 1,000MΩ
- Operating Temperature: -40°C to +105°C
- Voltage Rating: 250V AC
- Withstand Voltage: 600V
- Insulator Material: High Temperature Plastic
- Insulator Colour: Black
- Contact Material: Copper Alloy
- Plating: Gold Plated
Buy the 2213S-22G MULTICOMP PRO 22 Way Board to Board Connector | myMectronic
Purchase the MULTICOMP PRO 2213S-22G connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2213S22G?
You can click on the BUY or RFQ button to purchase 2213S22G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2213S22G?
You can download the 2213S22G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2213S22G?
MULTICOMP PRO
