MULTICOMP PRO MP000800 Microswitch
This through-hole snap action microswitch offers reliable switching with a contact rating of 0.5A at 30V DC. It features a rugged design with mechanical durability of 100,000 cycles and electrical durability of 50,000 cycles, suitable for applications like mapping devices, small audio equipment, OA equipment, and portable electronic devices. The switch operates within a temperature range of -40°C to +85°C, with quick response times and precise operating characteristics such as an operating force of 0.5N and a release force of 0.03N. It is RoHS compliant and available in SPDT, SPST-NC, and SPST-NO configurations, with both short and long terminal options, making it adaptable for various electronic control applications.
MULTICOMP PRO MP000800 Microswitch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles
- Electrical Durability: 50,000 cycles
- Contact Resistance: > 100mΩ max
- Insulation Resistance: ≥ 100MO at 500V DC
- Dielectric Strength: 250V AC between terminals and to ground for 1 minute
- Operating Temperature: -40°C to +85°C
- Operating Force: 0.5N max
- Release Force: 0.03N min
- Over Travel: 0.3mm min
- Movement Differential: 0.7mm max
- Operating Position: 6.7mm +0.5mm
- Free Position: 8mm max
- Pretravel: 1.8mm max
- Terminal Type: Uneven Pitch
- Configuration: SPDT, SPST-NC, SPST-NO
- Durability and operation specifications are suitable for electronic control and switching applications

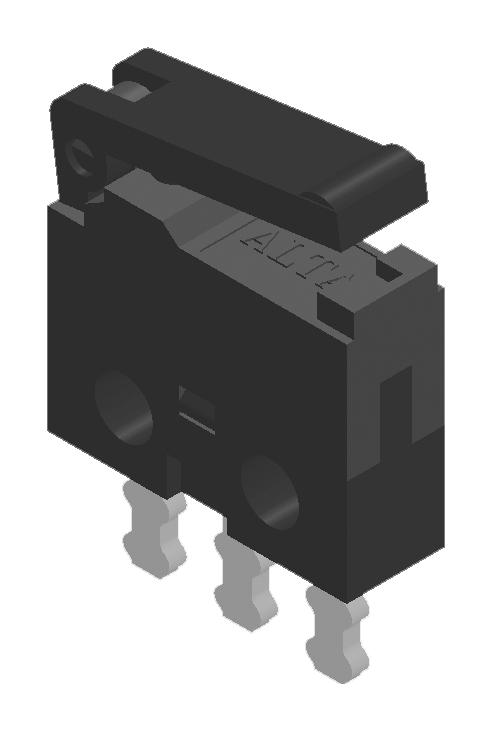

Buy the Multicomp Series Microswitches Hinge Lever: MP000800
Purchase the reliable and versatile microswitch online today. Designed for durability, it offers precise operation with a contact rating of 0.5A at 30V DC. Suitable for mapping devices, audio equipment, and portable electronics, this switch features quick response times and high cycle endurance, ensuring consistent performance in demanding environments. Easy to install with multiple terminal options, it’s RoHS compliant and optimized for various circuit configurations. Order now for fast delivery and expert support.
Get Multicomp MP000800 today—built for precision and long-lasting durability in electronic switching applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000800?
You can click on the BUY or RFQ button to purchase MP000800 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000800?
You can download the MP000800 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000800?
MULTICOMP PRO
