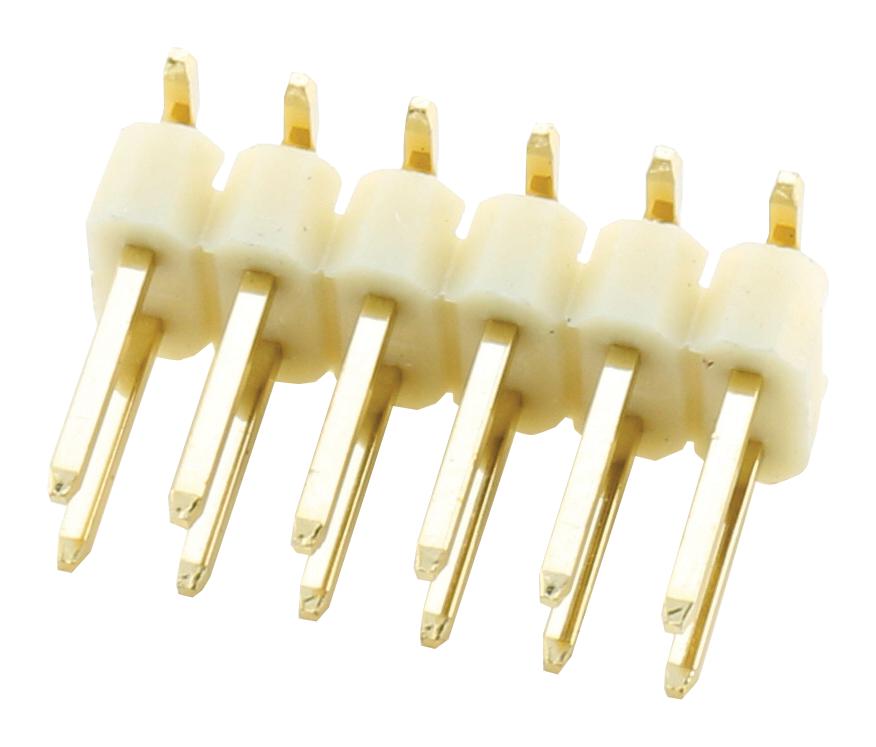

MULTICOMP PRO 2213SM12GTB Pin Header
The 2.54mm Pin Header is a reliable, high-quality vertical, surface-mount device designed for compact and efficient PCB connections in industrial and electronic applications. It features a double-row configuration with multiple pole options, including 12-position variants, with a rated current of 3A and voltage of 250V AC/DC. Made from high-temp Nylon 6T UL94V-0 with gold-plated copper alloy contacts, it ensures excellent conductivity, corrosion resistance, and durability within a temperature range of -40°C to +105°C. Ideal for custom electronic assemblies, automation, and circuit board interconnections.
MULTICOMP PRO 2213SM12GTB Pin Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials and Finish: High Temp. Plastic Nylon 6T UL94V-0, Copper Alloy, Gold Plated
- Insulator Colour: Ivory
- Dimensions: 6.00 mm pitch, 7.50 mm contact length, 3A current rating, 250V voltage rating
- Diagram: 2.54X(Contacts/2)+0.30 mm, 72.54X(Contacts/2—1)+0.15 mm, 440.0.64 mm
Buy the Multicomp 2213SM12GTB – Reliable Pin Header for Industrial Applications
Purchase the Multicomp Pin Header 2213SM12GTB online now for dependable PCB connections in your electronic designs. With a 2.54mm pitch and double-row configuration, this surface-mount component offers robust performance, rated for 3A and 250V AC/DC. Constructed from high-temperature nylon with gold-plated copper contacts, it ensures excellent conductivity, corrosion resistance, and thermal stability from -40°C to +105°C. Perfect for automation, industrial, and electronic circuit applications, this header guarantees reliable, long-lasting connections for your projects.
Get Multicomp 2213SM12GTB today—built for precision and long-lasting durability in electronic and PCB assembly projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2213SM12GTB?
You can click on the BUY or RFQ button to purchase 2213SM12GTB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2213SM12GTB?
You can download the 2213SM12GTB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2213SM12GTB?
MULTICOMP PRO
