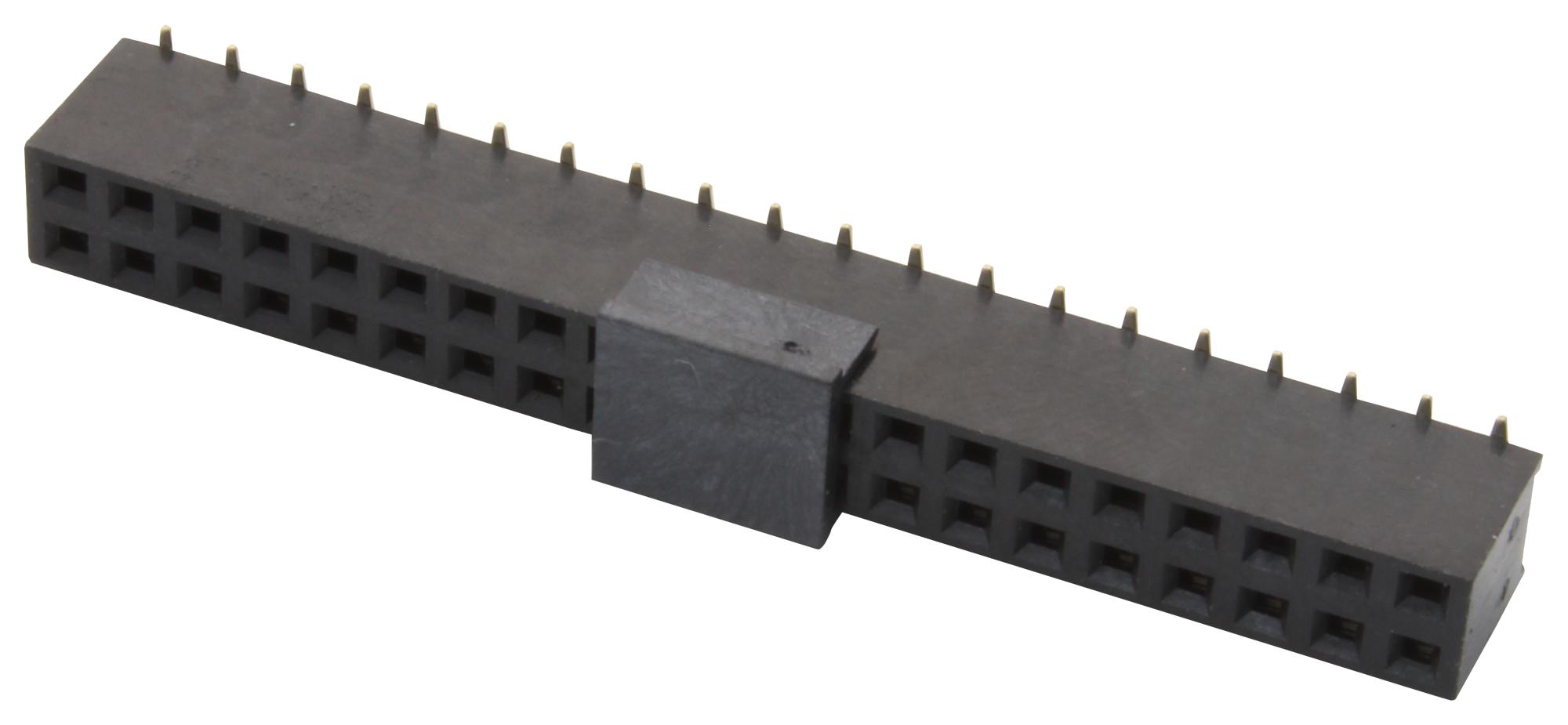

MULTICOMP PRO 2214SM22G75PCR PCB Socket
This 2.54mm pitch PCB socket with cap offers a reliable connection solution for electronic projects with a double-row, vertical, SMD configuration. Constructed with high-temperature plastic (Nylon 6T UL94V-0) and gold-plated phosphor bronze contacts, it supports a current rating of 3A and a voltage rating of 250V. Designed for SMT mounting, it withstands voltage up to 600V AC for a minute. Its compact dimensions and RoHS compliance make it ideal for modern electronic assemblies, ensuring durability and excellent electrical performance in a range of operating temperatures from -40°C to +105°C.
MULTICOMP PRO 2214SM22G75PCR PCB Socket Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mQ Max.
- Insulation Resistance: 1000MQ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: High Temp. Plastic (Nylon 6T UL94V-0)
- Insulator Colour: Black
- Contact Material: Phosphor Bronze
- Plating: Gold Plated
- Dimensions: 28.44mm x 25.4mm x 5.8mm for the 22POS variant
- Mounting Style: SMD
- Number of Positions: 22 positions
- Row Type: Double Row
- RoHS Compliant
Buy the Buy Connectors and Sockets Parts Number 2214SM22G75PCR Online
Discover the high-performance 2.54mm pitch PCB socket with cap, designed for SMD mounting and double-row configurations. Made with high-temp nylon insulators and gold-plated phosphor bronze contacts, it supports 3A current and 250V voltage ratings. Its compact size and RoHS compliance make it perfect for modern electronic assemblies needing durable and reliable connections. Suitable for a wide temperature range from -40°C to +105°C, this socket ensures excellent electrical performance and mechanical stability in diverse environments. Buy online now for quality and dependability.
Order your Multicomp Series 2214SM22G75PCR 2.54mm PCB socket with cap today and ensure reliable, high-quality connections for your electronic projects.
