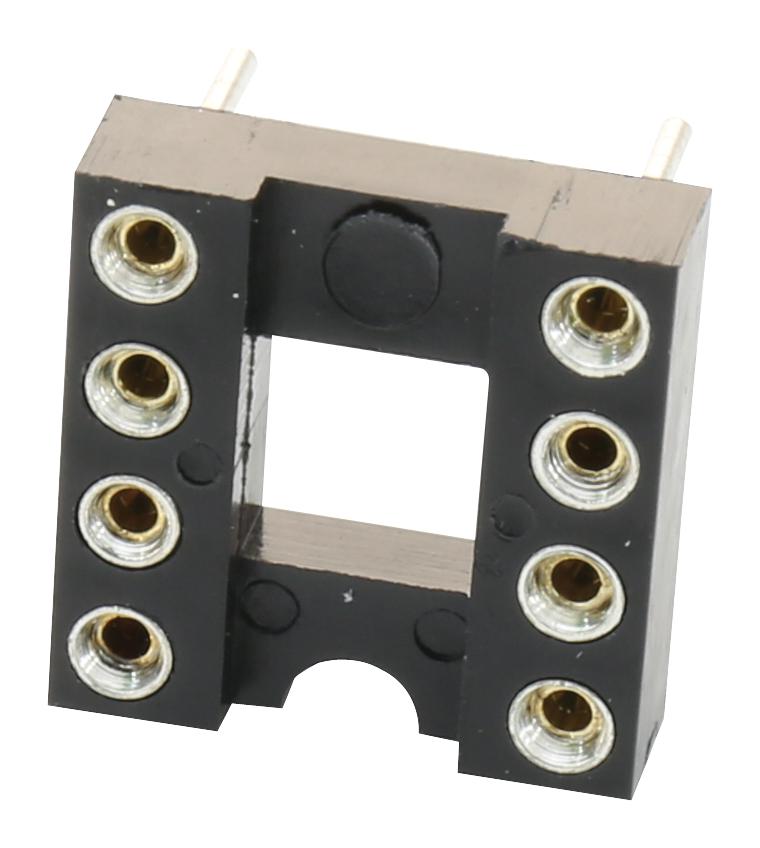

MULTICOMP PRO 2227MC080318F1 IC Socket Machine Pin
The MULTICOMP PRO 2227MC series IC sockets are precision-engineered components designed for secure and reliable mounting of integrated circuits. These sockets are characterized by their 2.54mm pitch, making them compatible with standard IC footprints. Constructed with a phosphor bronze contact and PBT insulator, they provide excellent electrical conductivity and insulation resistance. The sockets are ideal for applications in industrial automation, consumer electronics, and telecommunications equipment where reliable circuit board connections are essential. They are available in various circuit configurations to accommodate different IC package sizes.
MULTICOMP PRO 2227MC080318F1 IC Socket Machine Pin Specifications:
- Current Rating: 1A AC/DC
- Maximum Contact Resistance: 20mΩ
- Minimum Insulator Resistance: 1,000MΩ
- Withstanding Voltage: 1000V AC for one minute
- Operating Temperature: -55°C to +125°C
- Insulator Material: PBT
- Contact Material: Phosphor Bronze
- Plating Material: Tin Plating
- Dimension A: 10.16mm (for 8 circuits)
- Dimension B: 7.62mm (for 8 circuits)
- Dimension C: 10.16mm (for 8 circuits)
- Dimension D: 7.62mm (for 8 circuits)
- Spacing: 03
Buy the 2227MC-08-03-18-F1 MULTICOMP PRO IC Socket Machine Pin | myMectronic
Purchase the MULTICOMP PRO 2227MC-08-03-18-F1 IC Socket securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2227MC080318F1?
You can click on the BUY or RFQ button to purchase 2227MC080318F1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2227MC080318F1?
You can download the 2227MC080318F1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2227MC080318F1?
MULTICOMP PRO
