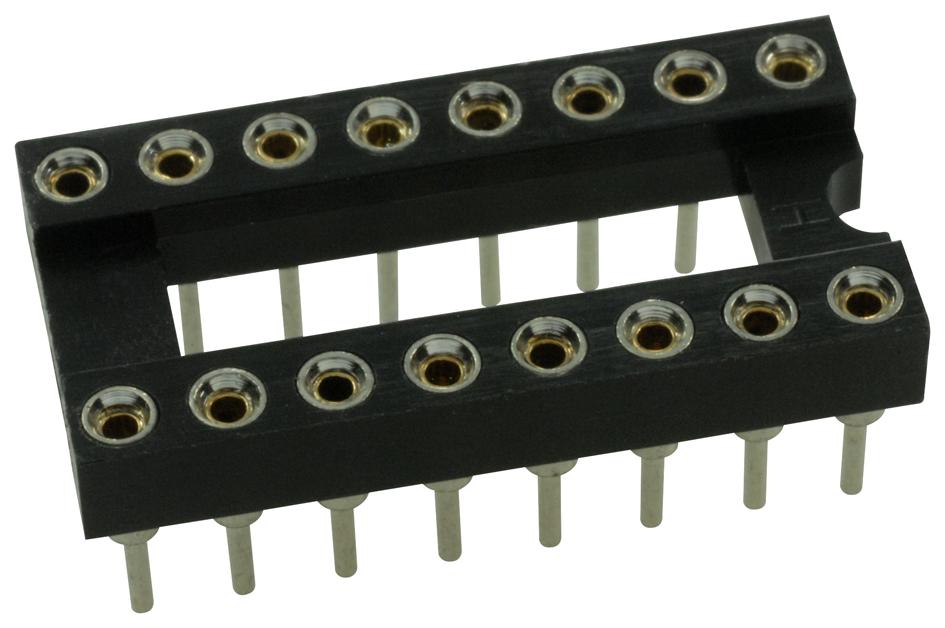

MULTICOMP PRO 2227MC160309F1 IC Socket Machine Pin
The MULTICOMP PRO 2227MC-16-03-09-F1 is a precision-engineered IC socket designed for secure and reliable mounting of integrated circuits in electronic assemblies. Featuring a 2.54mm pitch, this socket is compatible with standard IC packages and offers excellent electrical performance. Constructed with phosphor bronze contacts and PBT insulator, it ensures low contact resistance and high insulation resistance, making it suitable for a wide range of industrial and commercial applications. Its robust design and reliable performance make it a preferred choice for automated assembly processes.
MULTICOMP PRO 2227MC160309F1 IC Socket Machine Pin Specifications:
- Current Rating: 1A AC/DC
- Maximum Contact Resistance: 20mΩ
- Minimum Insulator Resistance: 1,000MΩ
- Withstanding Voltage: 1000V AC for one minute
- Operating Temperature: -55°C to +125°C
- Insulator Material: PBT
- Contact Material: Phosphor Bronze
- Plating Material: Tin Plating
- Dimension A: 20.32 Millimetres
- Dimension B: 17.78 Millimetres
- Spacing: 03
