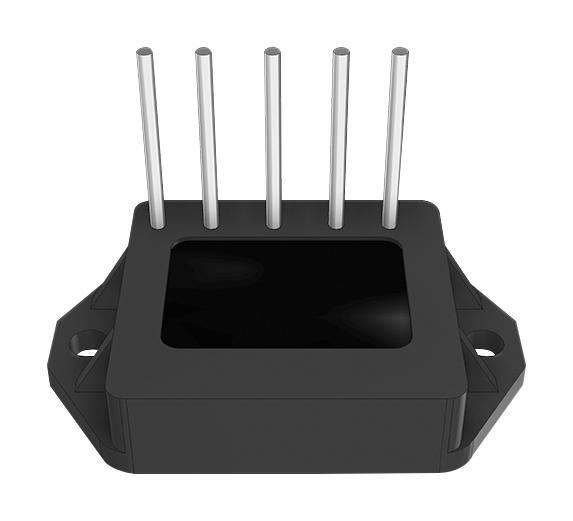

MULTICOMP PRO SMT5014GW Three Phase Bridge Rectifier
A high-reliability three-phase bridge rectifier designed for industrial applications, featuring glass passivation, high surge capacity, and low forward voltage drop. It is suitable for converting AC to DC in power supply systems, with ratings up to 1400V and 50A, making it ideal for use in industrial equipment, power converters, and manufacturing control systems. The device comes in an SMTGW package, mounted on heatsinks for efficient heat dissipation, and features plated solderable leads for easy installation. It operates efficiently within -40°C to +150°C, ensuring durability in demanding environments.
MULTICOMP PRO SMT5014GW Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 800-1600 V depending on part number
- Working Peak Reverse Voltage VRWM: 800-1600 V
- DC Blocking Voltage VR: corresponding to VRRM
- Peak Non-Repetitive Reverse Voltage VRSM: 900-1700 V
- RMS Reverse Voltage VR(RMS): 560-1120 V
- Maximum Average Forward Rectified Current: 50A
- Peak Forward Surge Current: 400A
- Maximum Forward Voltage Drop: 0.44 V at 25A
- Reverse Peak Current: 5 pA at VR=Vrrm, 3 mA at TJ=150°C
- Insulation Voltage from case to lead: 2500 V
- Operating Temperature Range: -40°C to +150°C
- Storage Temperature Range: -40°C to +125°C
- Package: SMTGW
- Mounting: Bolt down on heatsink with thermal compound, torque 2N.m
- Weight: approximately 21 grams
Buy the Multicomp Pro SMT5014GW U+2013 Reliable Bridge Rectifier for Industrial Applications
Order the Multicomp Pro SMT5014GW three-phase bridge rectifier online today to ensure robust power conversion in industrial environments. This high-reliability rectifier features a maximum voltage rating of 1400V and a current capacity of 50A, making it suitable for demanding applications like power supplies, manufacturing equipment, and automation systems. Its glass passivation ensures increased reliability, while the SMTGW package facilitates easy mounting on heatsinks for efficient heat dissipation. Buy now to enhance your power system performance with this durable, high-performance bridge rectifier.
Get Multicomp Pro SMT5014GW today—built for precision, high surge capacity, and long-lasting durability in industrial power systems.
