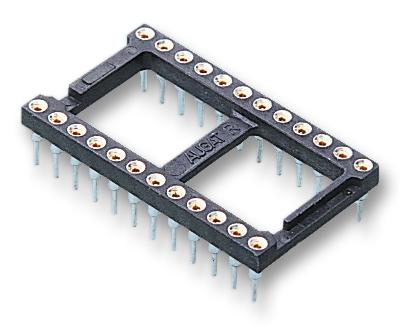

MULTICOMP PRO 2227MC1803F1 IC Socket Machine Pin
The MULTICOMP PRO 2227MC-18-03-F1 is a precision-engineered IC socket designed for robust and reliable performance in a wide range of electronic applications. Featuring a 2.54mm pitch, this socket is compatible with standard IC footprints. The tin-plated contacts ensure excellent solderability and corrosion resistance, while the high-temperature plastic (UL94V-0) insulator provides superior insulation and heat resistance. This socket is particularly well-suited for automated assembly processes and demanding industrial environments where secure and dependable component mounting is critical.
MULTICOMP PRO 2227MC1803F1 IC Socket Machine Pin Specifications:
- Current Rating: 1A AC/DC
- AC/DC Voltage Rating: 100V
- Maximum Contact Resistance: 15mΩ
- Minimum Insulator Resistance: 5,000MΩ
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature: -40°C to +105°C
- Insulator Material: High Temperature Plastic (UL94V-0)
- Contact Material: Beryllium Copper (Becu)
- Plating: Tin Plated
- Circuits: 18
- Dimension A: 22.86mm
- Dimension B: 20.32mm
- Dimension C: N/A
- Dimension D: N/A
- Spacing: 3
Buy the 2227MC-18-03-F1 MULTICOMP PRO IC Socket Machine Pin | myMectronic
Purchase the MULTICOMP PRO 2227MC-18-03-F1 IC Socket online for a secure and reliable sourcing experience.
