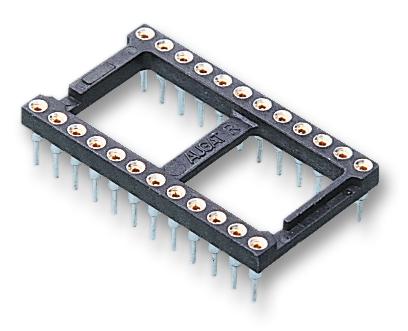

MULTICOMP PRO 2227MC240608F1 IC Socket Machine Pin
The MULTICOMP PRO 2227MC-24-06-08-F1 is a 2.54mm pitch IC socket specifically engineered for machine pin insertion. Constructed with high-temperature plastic (UL94V-0) and Beryllium Copper (Becu) contacts with Tin plating, this socket offers excellent electrical and mechanical performance. It is suitable for a wide range of applications including industrial automation, consumer electronics, and telecommunications equipment where reliable IC connections are critical. The socket's design facilitates efficient automated assembly processes, reducing manufacturing time and costs.
MULTICOMP PRO 2227MC240608F1 IC Socket Machine Pin Specifications:
- Current Rating: 1A AC/DC
- AC/DC Voltage Rating: 100V
- Maximum Contact Resistance: 15mΩ
- Minimum Insulator Resistance: 5,000MΩ
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature: -40°C to +105°C
- Insulator: High Temperature Plastic (UL94V-0)
- Contacts: Beryllium Copper (Becu)
- Plating: Tin Plated
- Circuits: 24
- Dimension A: 30.48mm
- Dimension B: 27.94mm
- Dimension C: 17.78mm
- Dimension D: 15.24mm
- Spacing: 6
Buy the 2227MC-24-06-08-F1 MULTICOMP PRO IC Socket Machine Pin | myMectronic
Purchase the MULTICOMP PRO 2227MC-24-06-08-F1 IC Socket with confidence and enjoy secure online ordering and fast shipping.
