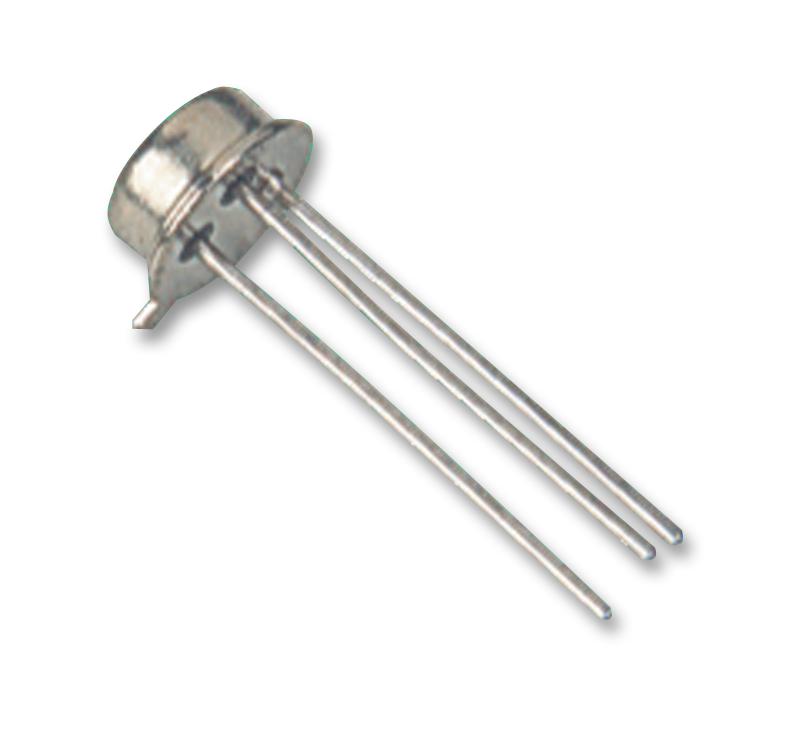

MULTICOMP PRO MP001165 NPN Silicon Transistor
The NPN Silicon Planar Transistor offers a maximum collector-emitter voltage of 50V and a collector-base voltage of 75V, making it suitable for low to medium power switching and amplification applications. It features high DC current gain, fast transition frequency, and low capacitance, ensuring efficient performance in various electronic circuits. Encased in a TO-39 metal can, the transistor operates in temperature ranges from -65°C to +200°C, with robust power dissipation of up to 3W at 25°C. Its compact size and RoHS compliance make it ideal for modern electronic designs requiring reliability and efficiency.
MULTICOMP PRO MP001165 NPN Silicon Transistor Specifications:
- Collector Emitter Voltage: 50 V
- Collector Base Voltage: 75 V
- Emitter Base Voltage: 7 V
- Power Dissipation: 3 W at 25°C
- Operating Temperature Range: -65°C to +200°C
- Transition Frequency: 70 MHz
- Input Impedance: 24 - 34 Ω
- Small Signal Current Gain hfe: 70 - 300
- Collector Emitter Saturation Voltage: 0.5 V
- Base Emitter Saturation Voltage: 1.3 V
- Dimensions (Millimeters): A: 8.5-9.39, B: 7.74-8.50, C: 6.09-6.60, D: 0.4-0.53, E: 0.88, F: 2.41-2.66
- Package: TO-39 Metal Can
- RoHS Compliant
Buy the Multicomp Series NPN Silicon Transistor: MP001165
Order the high-quality NPN Silicon Transistor MP001165 online today and enhance your circuit designs with its excellent switching and amplification capabilities. This TO-39 package transistor provides high current gain, efficient performance, and a wide operating temperature range, making it ideal for various electronic applications. With RoHS compliance, it guarantees environmentally friendly manufacturing standards. Secure your supply today and enjoy fast delivery, competitive pricing, and technical support to ensure your project's success.
Buy Multicomp Series NPN Silicon Transistor MP001165 now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001165?
You can click on the BUY or RFQ button to purchase MP001165 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001165?
You can download the MP001165 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001165?
MULTICOMP PRO
