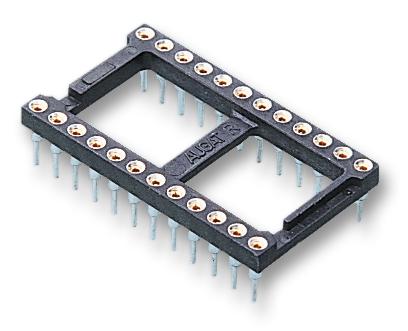

MULTICOMP PRO 2227MC2803F1 2.54mm IC Socket
The MULTICOMP PRO 2227MC-28-03-F1 is a robust and reliable 2.54mm pitch IC socket designed for secure and efficient component mounting in electronic assemblies. Constructed with high-temperature plastic (UL94V-0) for the insulator and tin-plated beryllium copper (Becu) contacts, this socket ensures excellent electrical performance and durability. Its compact design and standardized pitch make it compatible with a wide range of IC packages, making it ideal for applications in industrial automation, consumer electronics, and telecommunications equipment. The socket's robust construction and reliable performance contribute to the overall reliability of the electronic system.
MULTICOMP PRO 2227MC2803F1 2.54mm IC Socket Specifications:
- Current Rating: 1A AC/DC
- AC/DC Voltage Rating: 100V
- Maximum Contact Resistance: 15mΩ
- Minimum Insulator Resistance: 5,000MΩ
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature: -40°C to +105°C
- Insulator: High Temperature Plastic (UL94V-0)
- Contacts: Beryllium Copper (Becu)
- Plating: Tin Plated
- Dimension A: 35.56mm
- Dimension B: 33.02mm
- Dimension C: N/A
- Dimension D: N/A
- Spacing: 3
