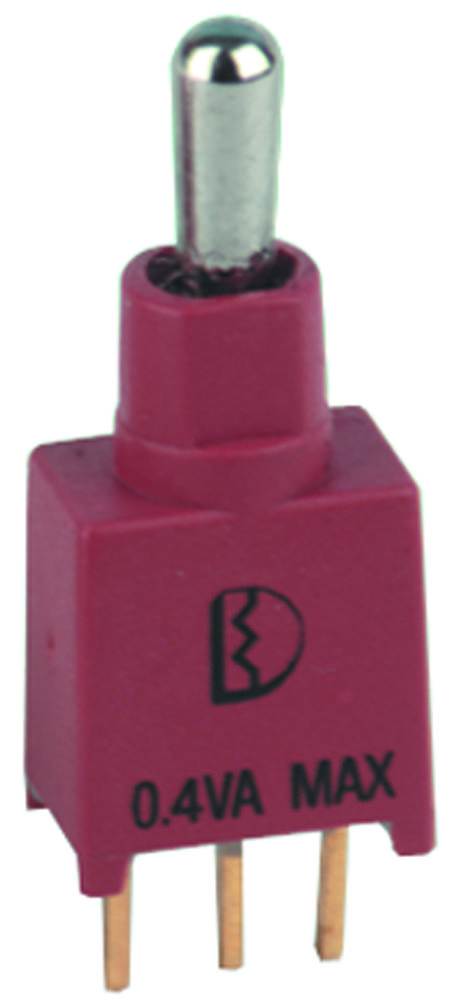

MULTICOMP PRO 2AS5T2A1M2RE Sealed Sub-Miniature Toggle Switch
The 2A Series sealed sub-miniature toggle switch offers reliable operation with a mechanical life of 30,000 cycles, insulative resistance minimum 1,000MQ, and dielectric strength of at least 1,000 Vrms at sea level. Crafted with flame-retardant, heat-stabilized nylon 6/6, brass, and copper alloy components, it features contact resistance of 20mQ max and operates within -40°C to 85°C. Ideal for compact electronic designs requiring dependable switching performance with options for contact and terminal plating, making it suitable for industrial and control applications.
MULTICOMP PRO 2AS5T2A1M2RE Sealed Sub-Miniature Toggle Switch Specifications:
- Mechanical Life: 30,000 make-and-break cycles
- Contact Resistance: 20mQ max. initial @ 2-4V DC, 100mA
- Insulation Resistance: 1,000MQ min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -40°C to 85°C
- Materials: Case and Bushing - Glass filled nylon 6/6, flame retardant, heat stabilized (UL94V-0); Actuator - Brass, Chrome plated; Switch Support - Brass, Tin plated; Contact / Terminals - Copper alloy with Silver or Gold plated
- Contact Material Options: Silver, Gold over Silver, Gold
- Contact Plating Ratings: 3 Amps @ 120V AC or 28V DC (Silver), 1 Amp @ 250V AC (Gold over Silver), 0.4 Volt-Amps max. @ 20V (Gold)
- Switch Function: Multiple configurations including ON, OFF, MOM, and combinations for single and double pole switches
- Pole Options: SPDT, DPDT
- Actuator & Bushing Options: Plastic or chrome-plated brass with various mounting configurations
- Soldering Process: Manual (350°C, 5 sec), Wave (270°C+, 5 sec max)
Buy the Multicomp Series 2A Sealed Switch: 2AS5T2A1M2RE
Enhance your electronic assemblies with the highly reliable and durable Sealed Sub-Miniature Toggle Switch from Multicomp. Featuring a lifespan of 30,000 cycles, it is designed with high-quality materials such as flame-retardant nylon and corrosion-resistant brass and copper alloy contacts. Suitable for industrial and control applications, it operates efficiently within -40°C to 85°C, offering excellent insulation and dielectric properties. Easy to install with various pole, actuator, and termination options, making it an ideal choice for compact, high-performance control systems. Buy online now to secure dependable switch performance for your projects.
Order your Multicomp Series 2A sealed sub-miniature toggle switch today and ensure reliable switching performance for compact electronic projects.
