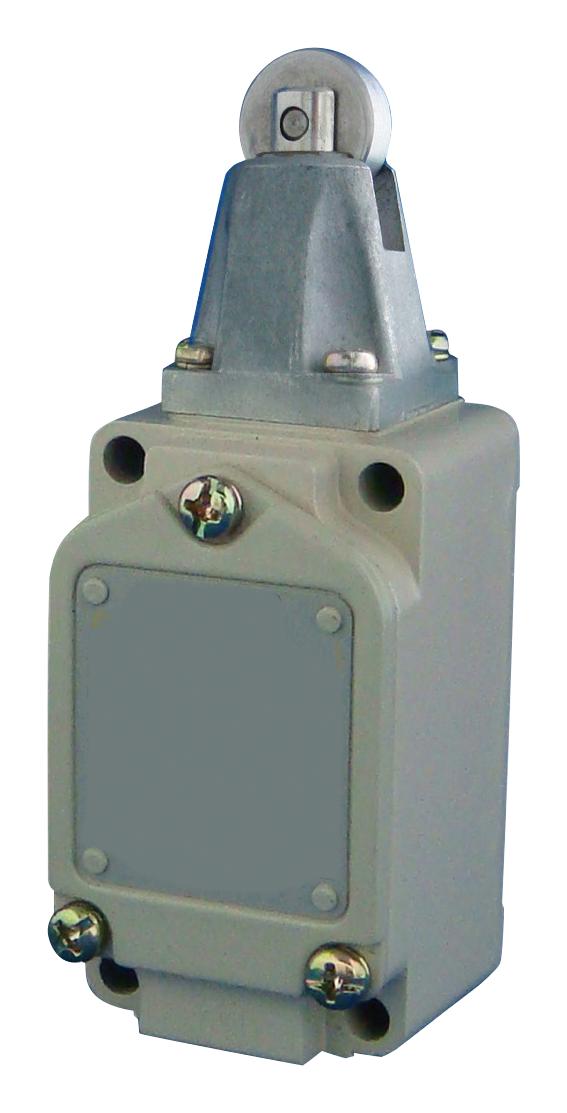

MULTICOMP PRO MC002431 Two-Circuit Limit Switch
This two-circuit limit switch features robust IP67 protection, rated IEC 60947-5-1 AC-15 250V AC / 2A, and UL508. A600 250V AC / 15A. It boasts mechanical durability of 15 million operations and electrical durability of 750,000 operations. Operating speed is up to 1 m/s, with an operating frequency of 120 mechanical and 30 electrical operations per minute. It includes various lever options, such as top roller, horizontal roller, and adjustable levers, with comprehensive physical and electrical specifications suitable for industrial automation applications.
MULTICOMP PRO MC002431 Two-Circuit Limit Switch Specifications:
- Degree of protection: IP67
- Rated voltage: IEC 60947-5-1 AC-15 250V AC / 2A, UL508. A600 250V AC / 15A
- Mechanical durability: 15,000,000 operations
- Electrical durability: 750,000 operations
- Operating speed: up to 1 m/s
- Operating frequency: Mechanical 120 ops/min, Electrical 30 ops/min
- Insulation Resistance: 100MQ min. at 500V DC
- Contact Resistance: ≤25mΩ initial
- Dielectric Strength: AC2,200V (1,500V) between parts and ground
- Rated insulation voltage: 250V
- Vibration resistance: Malfunction 1.5mm double amplitude, Destruction 1000mm/s²
- Shock resistance: Malfunction 300mm/s²
- Ambient temperature: -10°C to +80°C, no icing
- Humidty: 35% to 95% RH
- Approved by UL, CSA, CCC
Buy the Multicomp Series Two-Circuit Limit Switch: MC002431
Purchase your Multicomp Series Two-Circuit Limit Switch MC002431 online today to enjoy dependable performance in industrial control applications. Designed with IP67 protection, rated for IEC 60947-5-1 AC-15 250V AC / 2A, and UL508 standards, this switch offers exceptional durability, with 15 million mechanical operations and 750,000 electrical cycles. Its versatile lever options, including top roller and adjustable levers, make it ideal for demanding environments. Ensure seamless operation and precision control in your automation systems by buying online now.
Order your Multicomp Series Two-Circuit Limit Switch MC002431 today and ensure reliable, high-performance control for your industrial automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002431?
You can click on the BUY or RFQ button to purchase MC002431 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002431?
You can download the MC002431 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002431?
MULTICOMP PRO
