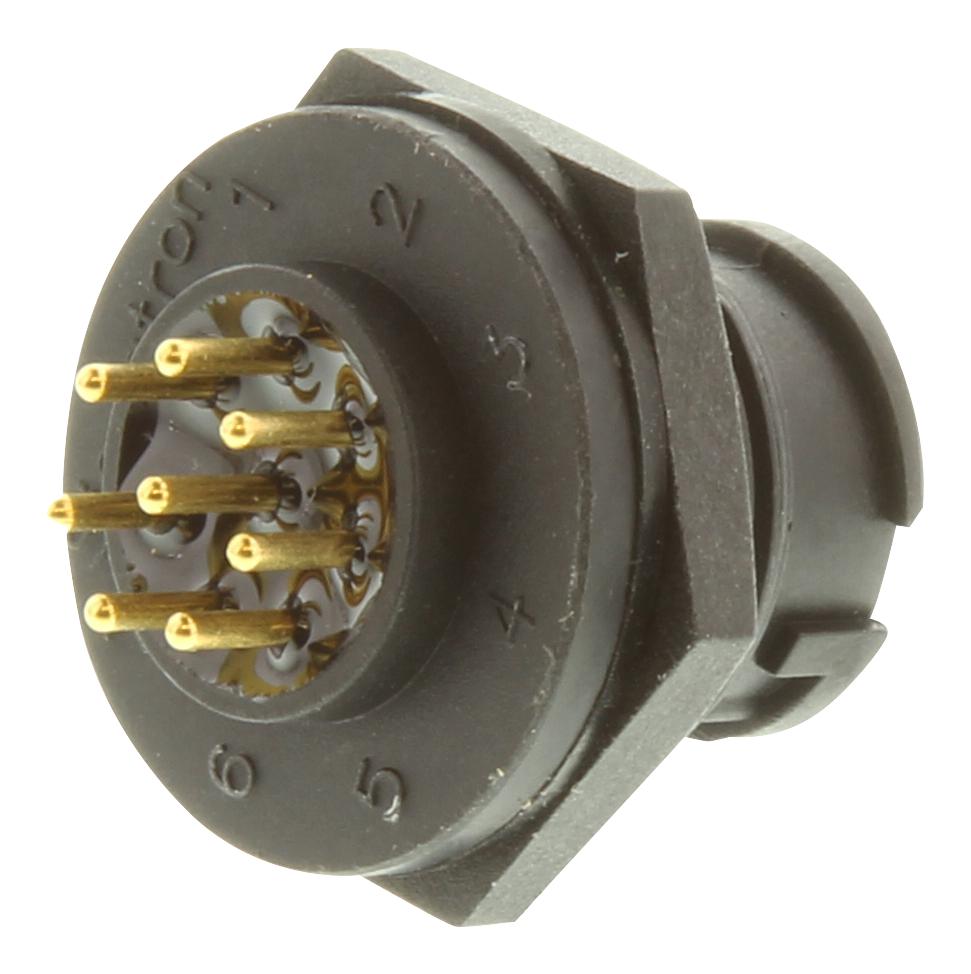

MULTICOMP-PRO 2CT3000W08300 Waterproof Circular Connector
The 2CT3000-W08300 from Multicomp is an 8-position, 5A waterproof circular panel mount receptacle with solder termination. It features an IP67 rating, suitable for outdoor and harsh environments, and is designed for panel thickness up to 4mm. The connector has a lock-type mating style with a nylon and glass-filled polybutylene terephthalate body. It offers low contact resistance (≤30mΩ), high insulation resistance (≥100MΩ at 500VDC), and durability of up to 500 mating cycles. Operable in temperatures from -40°C to +100°C, with copper alloy gold-plated pin contacts. The connector resists salt spray corrosion for 48 hours and withstands a dielectric voltage of 500VAC for one minute. Suitable for industrial applications.
MULTICOMP-PRO 2CT3000W08300 Waterproof Circular Connector Specifications:
- Mating Style: Lock type
- Contact Gender: Male pin
- Material Contact: Copper alloy, gold plated
- Material Connector Body: Nylon+GF, PBT
- Panel Thickness: 4mm max.
- Contact Resistance: ≤30mΩ (without cable)
- Insulation Resistance: ≥100MΩ at 500VDC
- Durability: 500 cycles minimum
- Breakdown Voltage: 500VAC for one minute
- Corrosion: Salt spray resistant for 48 hours
- Temperature Range: -40°C to +100°C
- Current Rating: 5A
- Dielectric Withstanding Voltage: 500V AC for 1 minute
- Waterproof Rate: IP67 (immersed in 1m water for 30 minutes)
Buy the Multicomp 2CT3000W08300 – Reliable Waterproof Circular Connector for Industrial Applications
Secure your industrial and outdoor projects with the waterproof circular connector from Multicomp. This durable 8-position, 5A connector features IP67 rating, solder termination, and high resistance to corrosion and temperature extremes. Its reliable design ensures up to 500 mating cycles, making it ideal for harsh environments. Perfect for panel mounting up to 4mm thick, with gold-plated contacts and a lock-style mating system, it provides consistent performance in outdoor applications. Purchase online today for top quality and dependable performance.
Order your Multicomp series 2CT3000W08300 waterproof connector today and equip your projects with dependable outdoor and harsh environment connectivity.
