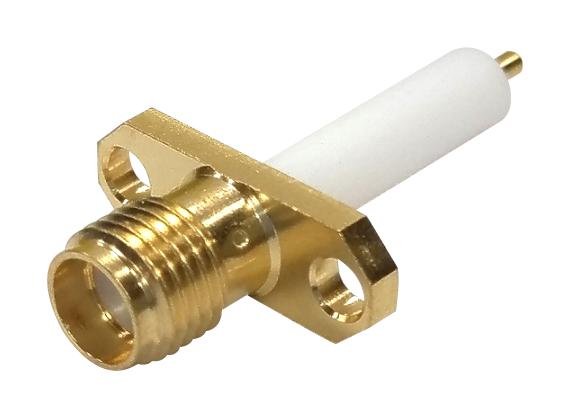

MULTICOMP PRO MC002928 SMA RF Connector
This straight SMA jack receptacle with solder termination is designed for high-frequency applications up to 26.5GHz. It features a 2-hole flange mount, made from corrosion-resistant stainless steel, with a beryllium copper center contact and PTFE insulation. The connector supports operating temperatures from -65°C to +165°C, ensuring durability in extreme environments. Its electrical specifications include a maximum voltage of 500V and VSWR of 1.17 at 18GHz, making it ideal for RF and microwave systems requiring reliable high-frequency connections.
MULTICOMP PRO MC002928 SMA RF Connector Specifications:
- Connector Body Style: Straight Jack Receptacle
- Type: SMA
- Mounting: 2-Hole Flange Mount
- Termination: Solder
- Frequency Range: DC 26.5GHz
- Impedance: 50Ω
- Voltage Rating: 500V Max.
- VSWR: 1.17 Max. @ 18GHz, 1.21 Max. @ 26.5GHz
- Body Material: Stainless Steel per JIS SUS 303
- Center Contact Material: Beryllium Copper per ASTM B196 UNS C17300
- Insulation Material: PTFE per ASTM D1457 and ASTM D1710
- Operating Temperature: -65°C to +165°C
Buy the Buy Multicomp SMA Part Number MC002928 Online
Enhance your RF and microwave projects with the high-quality Multicomp SMA RF connector. Designed for reliable high-frequency connections up to 26.5GHz, it features a sturdy stainless steel body, a precise beryllium copper center contact, and a PTFE insulator. Its 2-hole flange mount with solder termination simplifies installation, while its exceptional temperature range from -65°C to +165°C guarantees durability in demanding environments. Purchase online today to ensure your systems perform at peak efficiency with proven, professional-grade components.
Order your Multicomp SeriesMC002928 SMA connector today and ensure reliable high-frequency RF connections for your microwave systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002928?
You can click on the BUY or RFQ button to purchase MC002928 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002928?
You can download the MC002928 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002928?
MULTICOMP PRO
