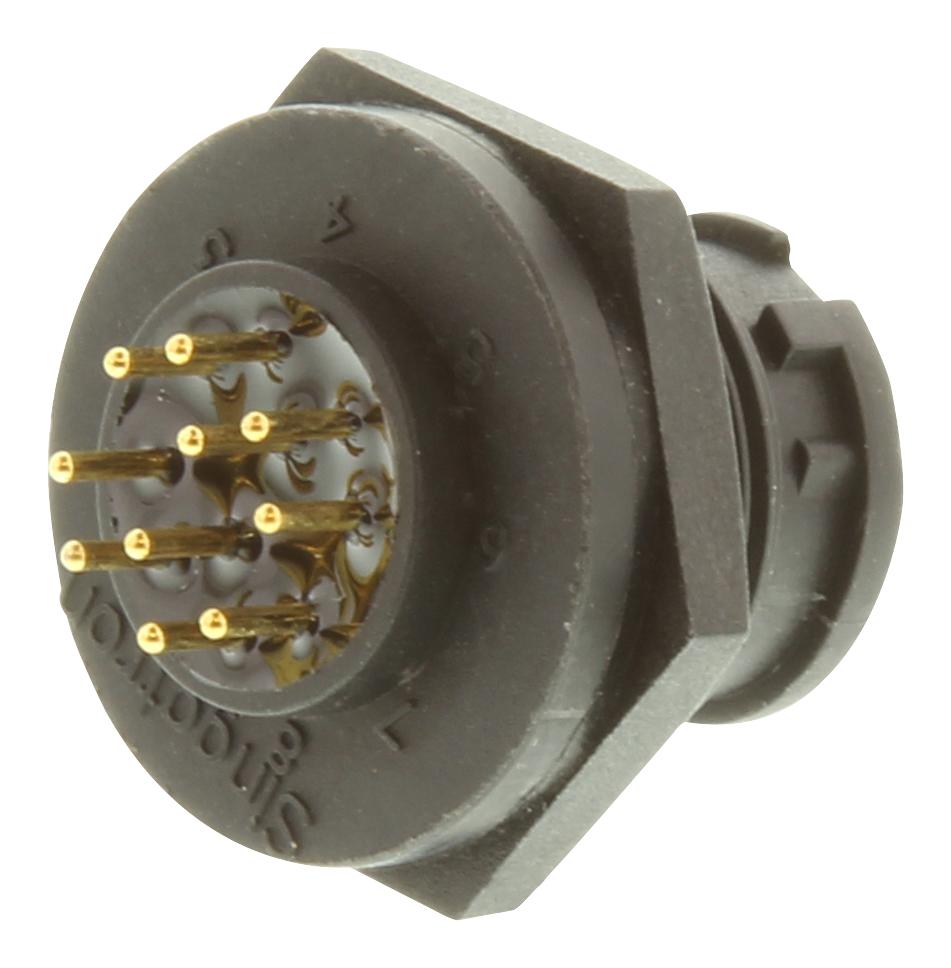

MULTICOMP PRO 2CT3000W10200 Panel Mount Waterproof Connector
The 2CT3000-W10200 from Multicomp is a waterproof, circular, panel-mount PCB connector designed for industrial applications. It features a 10-pin, 2A lock-type mating style with solder termination. Made from nylon with glass fiber reinforcement and polybutylene terephthalate, this connector offers durability, with a minimum of 500 mating cycles. It has an IP67 rating, suitable for waterproof environments, and supports a panel thickness of 4mm. Contacts are copper alloy with gold plating, ensuring low contact resistance and high insulation resistance. Withstanding temperatures from -40°C to +100°C, it resists corrosion for 48 hours salt spray, providing reliable performance in harsh environments.
MULTICOMP PRO 2CT3000W10200 Panel Mount Waterproof Connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Male pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Panel Thickness: 4mm Max.
- Contact Resistance: ≤30mΩ
- Insulation Resistance: ≥100 MΩ at 500VDC
- Durability: 500 cycles Min.
- Breakdown Voltage: 500VAC for one minute
- Corrosion Resistance: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Current Rating: 2A
- Waterproof Rate: IP67
- Dimensions: Suitable for panels with 4mm thickness, approximate diameter 14.8mm
- Certifications: IP67 waterproof, Salt spray resistant
Buy the Multicomp Series Panel Mount Waterproof Connector: 2CT3000W10200
Purchase the Multicomp Panel Mount Waterproof Connector 2CT3000-W10200 online today to ensure a reliable, durable, and waterproof connection solution for your industrial projects. Designed with a lock-style mating and high-quality copper alloy contacts, this connector features a 10-pin design rated for 2A and IP67 waterproof protection. Its rugged nylon and PBT construction withstands operating temperatures from -40°C to +100°C, making it ideal for harsh environments. Easy to install with a panel thickness of 4mm, it ensures long-lasting performance with minimal maintenance and excellent corrosion resistance. Buy online now to secure a dependable industrial connector solution with trusted quality and quick delivery.
Get Multicomp 2CT3000-W10200 today—built for waterproof industrial applications with durability and reliable performance.
